उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: E-link
प्रमाणन: CE, FCC, RoHS
मॉडल संख्या: एलएनके-एमएचडी-एमएम
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1 टुकड़ा
मूल्य: Negotiated
पैकेजिंग विवरण: मानक निर्यात पैकेज
प्रसव के समय: 5-12working दिन
भुगतान शर्तें: टी/टी, पेपैल
आपूर्ति की क्षमता: 1000pcs/मुंह
परिचालन तापमान:: |
-20 ℃～+70 ℃ |
भंडारण तापमान:: |
-40 ℃～+80 ℃ |
काम कर रहे आर्द्रता: |
5% ~ 90% गैर संघनक |
आयाम (WXDXH):: |
79 x 27 x 18 मिमी |
वज़न:: |
0.5 किग्रा/जोड़ी |
झलार: |
एल्यूमीनियम केस |
परिचालन तापमान:: |
-20 ℃～+70 ℃ |
भंडारण तापमान:: |
-40 ℃～+80 ℃ |
काम कर रहे आर्द्रता: |
5% ~ 90% गैर संघनक |
आयाम (WXDXH):: |
79 x 27 x 18 मिमी |
वज़न:: |
0.5 किग्रा/जोड़ी |
झलार: |
एल्यूमीनियम केस |
Mini HD-SDI over Fiber Extender Advantage
► Each channel includes 8-channel audio embedded
► Automatic cable equalization to ensure signal integrity
► Automatic reclocking 270Mbit/s - 1.48Gbit/s
► Directly compatible with HD-SDI camera systems
► Long transmission capability up to 80 km
► Terminal block power input; Hot swap and hot plug;
► Full digital non-compression broadcast level transmission;
► Super optic dynamic range and free of adjustment;
► Fiber optic WDM/CWDM/DWDM technique;
► industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;
Mini HD-SDI over Fiber Extender Overview
LNK-MHD Series Mini HD-SDI Fiber Extender supports 1-channelHD-SDI Video (audio embedded)
signal transmitted via fiber optical cable. E-link HD-SDI Video over Fiber Converters includes one
transmitter and one receiver for HD-SDI signal. With compact size, it can easily integrate in other
devices. It’s widely used in surveillance and broadcasting area.
Mini HD-SDI over Fiber Extender Technical Indexes
|
Fiber Optical interface |
|
|
Fiber interface |
Simplex LC |
|
Transmission distance |
550m-20Km |
|
Wavelength |
1310nm/1550nm |
|
Video |
|
|
Video interface |
BNC |
|
Video input/output impedance |
75Ω |
|
Video input/output voltage |
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
|
Video Bits Rate |
Max 1.48Gb/s |
|
Differential gain (10%～90% APL) |
<1% |
|
SDI format support |
625/25 PAL |
|
525/29.97 NTSC, 525/23.98 NTSC |
|
|
720p50, 720p59.94 |
|
|
1080i 23/24/30/50/59.94 |
|
|
Video SDI standard |
270Mbps (SD-SDI) |
|
1.485Gbps (HD-SDI) |
|
|
Electrical |
|
|
Power adaptor |
5V DC, Type-C Interface |
|
Power consumption |
<3W |
|
LED Indicator |
|
|
SDI |
SDI video |
|
P/T |
Power Supply |
|
Mechanical |
|
|
Dimensions (LxWxH) |
79 x 27 x 18 mm |
|
Weight |
0.5KG/pair |
|
Casing |
Aluminum Case |
|
Mounting Options |
Desktop |
|
Environmental |
|
|
Working Temperature |
-20℃～+70℃ |
|
Storage Temperature |
-40℃～+80℃ |
|
Operating humidity |
5%~90% non-condensing |
|
Storage humidity |
5% ~ 90% non-condensing |
|
MTBF |
≥100000 hours |
Mini HD-SDI over Fiber Extender Ordering Information
|
Model |
Description |
|
LNK-MHD-MM |
Mini HD-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs |
|
LNK-MHD-20 |
Mini HD-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |

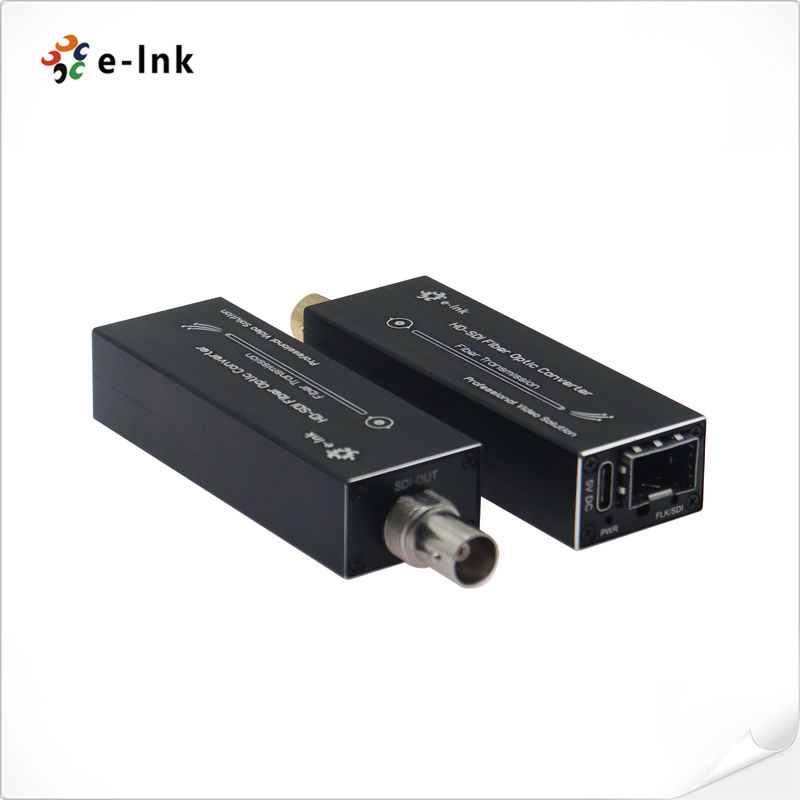

Mini HD-SDI over Fiber Extender Picture
Mini HD-SDI over Fiber Extender Application
