उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: E-link
मॉडल संख्या: LNK-3GSDI-4V1DT सीरीज
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1 टुकड़ा
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: कार्टन पैकेजिंग
प्रसव के समय: 3-12 कार्य दिवस
भुगतान शर्तें: एल/सी, टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल
आपूर्ति की क्षमता: 1000 पीसी/महीना
बिजली इनपुट: |
1A@12vdc |
औसत समय परेशानी मुक्त: |
> 100000 घंटे |
ईएमआई/आरएफआई: |
FCC भाग 15 क्लास ए, ईयू ईएमसी मानक से मिलें |
एसडीआई आउटपुट संख्या: |
4 |
एसडीआई इनपुट संख्या: |
4 |
परिचालन तापमान: |
-10 ℃～＋ 55 ℃ |
बिजली इनपुट: |
1A@12vdc |
औसत समय परेशानी मुक्त: |
> 100000 घंटे |
ईएमआई/आरएफआई: |
FCC भाग 15 क्लास ए, ईयू ईएमसी मानक से मिलें |
एसडीआई आउटपुट संख्या: |
4 |
एसडीआई इनपुट संख्या: |
4 |
परिचालन तापमान: |
-10 ℃～＋ 55 ℃ |
Advantages
► 4 channel 3G/HD-SDI video transmission over optic fiber
► Automatic cable equalization to ensure signal integrity
► Automatic reclocking 270Mbit/s - 1.48Gbit/s-3Gbit/s
► Directly compatible with 3G/HD-SDI camera systems and support 4Ch Loop output
► Long transmission up to 20 km (12.5miles) (Other distance Optional)
► Supports 4Ch Tally
► Full digital non-compression broadcast level transmission;
► Support 1Ch backward RS485 and 4Ch Tally;
► Working temperature range (-10℃~+55℃)
Overview

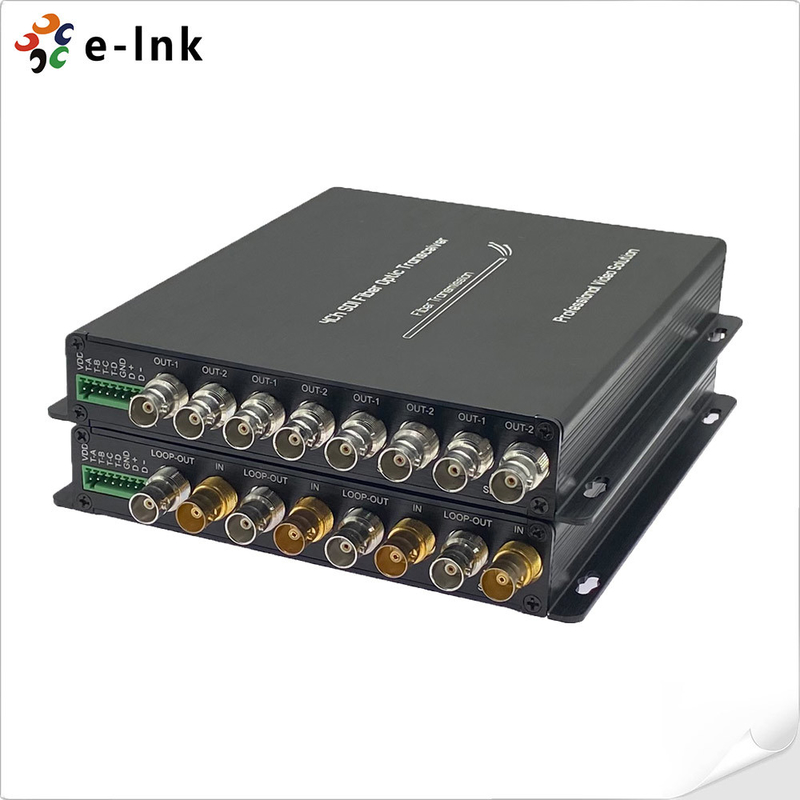

LNK-3GSDI-4V1DT Series supports 4-channel HD/3G-SDI standard high-definition video signal and RS485 and Tally signal transmitted via single fiber optical cable. E-link 3G-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G-SDI signal. E-link 3G-SDI Fiber Converters can transmit 4-Ch 3G-SDI Video signal through a single optical fiber, and it support Loop output, 4Ch Tally and backwards RS485. The video quality is non-compressed broadcast level. It’s widely used in broadcast field.
Technical Indexes
|
SDI Input |
SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI, DVB-SSI and Telecom/Datacom |
|
270Mbit/s - 1.48Gbit/s – 3Gbit/s |
|
|
Input number: 4 |
|
|
Reflection loss: >15DB |
|
|
Equilibrium: 0-150m @3Gb/s |
|
|
Connector: BNC |
|
|
Optics |
Channel: 1 |
|
Type: single-mode |
|
|
Transmission distance: 20km (Other distance Optional) |
|
|
Reflection loss: > 15dB |
|
|
Dithering: < 0.2UI |
|
|
Connector: FC/UPC (SC, LC, ST optional) |
|
|
SDI Output |
Output number:4 |
|
Signal level: 800mV nominal |
|
|
Rise/fall time: 200ps indication |
|
|
Overshoot: < 10% amplitude |
|
|
Reflection loss: >15dB |
|
|
Dithering: < 0.2UI |
|
|
Connector: 75Ω BNC |
|
|
Data |
1Ch RS-485 (full/half duplex) and support NRZ, RZI and Manchester |
|
Max. 57600bps for RS485 |
|
|
Connector: Industrial standard screw terminal |
|
|
4Ch Tally: A, B , C, D |
|
|
Power and environmental indication |
Operating temperature: -10℃～＋55℃ |
|
Power Input: 1A@12VDC |
|
|
EMI/RFI: meet FCC Part 15 Class A, EU EMC standard |
|
|
Average time trouble-free: >100000 hours |
|
|
SDI video format supports |
625/25PAL; 525/29.97NTSC; 525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94; |
Ordering Information
|
LNK-HDSDI-4V1D4T |
4-Ch HD-SDI Video with Loop output + 1Ch backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-3GSDI-4V1D4T |
4-Ch 3G-SDI Video with Loop output + backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs |
