उत्पाद का विवरण
Place of Origin: China
ब्रांड नाम: E-link
प्रमाणन: iso9001
Model Number: LNK-IMC008P
दस्तावेज: E-link LNK-IMC008P Industri....0.pdf
भुगतान और शिपिंग की शर्तें
Minimum Order Quantity: 1pcs
मूल्य: US$96-US$109
Packaging Details: Managed PoE Switch Standard Carton Packaging
Delivery Time: 3-5 working days
Payment Terms: T/T,Western Union,MoneyGram,PayPal
Supply Ability: 1000/Month
Maximum Distance: |
Cat5 UTP up to 100m |
Input Power: |
48~57VDC , Redundant Power (6-pin Terminal Block) |
Max Power per Port: |
30W Max per port (Alternative B Mode) |
Cabling: |
10Base-T: Cat5 or above |
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
Dimensions (WxDxH): |
150 x 115 x 50 mm |
Maximum Distance: |
Cat5 UTP up to 100m |
Input Power: |
48~57VDC , Redundant Power (6-pin Terminal Block) |
Max Power per Port: |
30W Max per port (Alternative B Mode) |
Cabling: |
10Base-T: Cat5 or above |
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
Dimensions (WxDxH): |
150 x 115 x 50 mm |

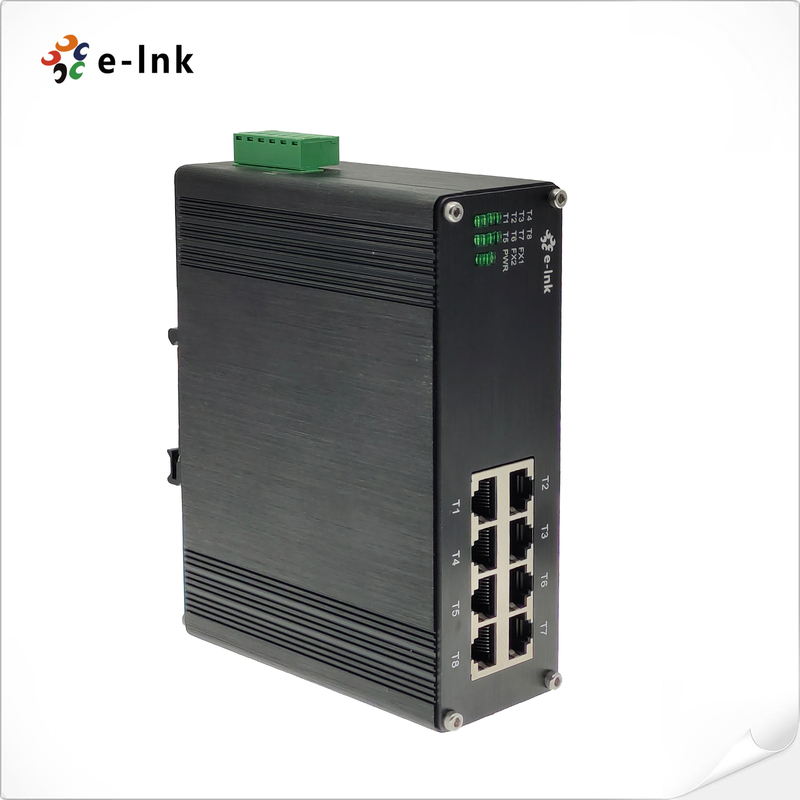

Model: LNK-IMC008P
Overview
Features
► 8x10/100Base-TX with PoE+
► Support IEEE802.3at PoE (30W per port)
► RJ45 Port Supports 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports 16K MAC address
► 2M bits frame buffer memory
► Supports DIN-Rail and Wall-mount installation
► Redundant Power Inputs
► -40°C to 80°C (-40°F to 176°F) operating temperature
Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX |
|
|
IEEE802.3x Flow control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3af Power over Ethernet |
|
|
IEEE802.3at Power over Ethernet |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
Cabling |
10Base-T: Cat5 or above |
|
100Base-TX: Cat5 or above |
|
|
Maximum Distance |
Cat5 UTP up to 100m |
|
Cabling |
10Base-T: Cat5 or above |
|
Interface |
|
|
Connector: |
8 x RJ45 |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57VDC , Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
245W Max. (PoE in use) |
|
5W Max. (PoE not in use) |
|
|
Standard: |
IEEE802.3af/at |
|
PoE: |
|
|
Port: |
RJ45 Port 1 ~ Port 8 |
|
Max. Power per Port: |
30W Max per port (Alternative B Mode) |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
PoE: |
Per Port Status |
|
Ethernet (Per Port): |
Link/Activity |
|
Dimensions (WxDxH): |
150 x 115 x 50 mm |
|
Weight: |
0.6Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55024:2010 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
Ordering Information
|
Model |
Description |
|
LNK-IMC008P |
Industrial 8-port 10/100BASE-T (8-port PoE+) Ethernet Switch |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
