उत्पाद का विवरण
Place of Origin: China
ब्रांड नाम: E-link
प्रमाणन: ISO9001, CE, FCC, RoHS
Model Number: LNK-SSP
दस्तावेज: E-link LNK-SSP RS485 Signal....0.pdf
भुगतान और शिपिंग की शर्तें
Minimum Order Quantity: 1pcs
मूल्य: बातचीत योग्य
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
Dimensions (WxDxH):: |
48*25*25mm |
Weight: |
9.8Kg (including Transmitter & Receiver) |
Limit voltage U r: |
≤8.8V |
Protected lines: |
Two-wire (1 pair) |
Mounting Options:: |
Rack-mount |
Response time T a: |
≤1ns |
Dimensions (WxDxH):: |
48*25*25mm |
Weight: |
9.8Kg (including Transmitter & Receiver) |
Limit voltage U r: |
≤8.8V |
Protected lines: |
Two-wire (1 pair) |
Mounting Options:: |
Rack-mount |
Response time T a: |
≤1ns |
Product Advantages
► Flow capacity, fast response
► Multi-level protection circuit, residual depression
► Use the core components of international brand products, excellent performance
► Take place through the special treatment to avoid signal interference
► Small size, easy installation

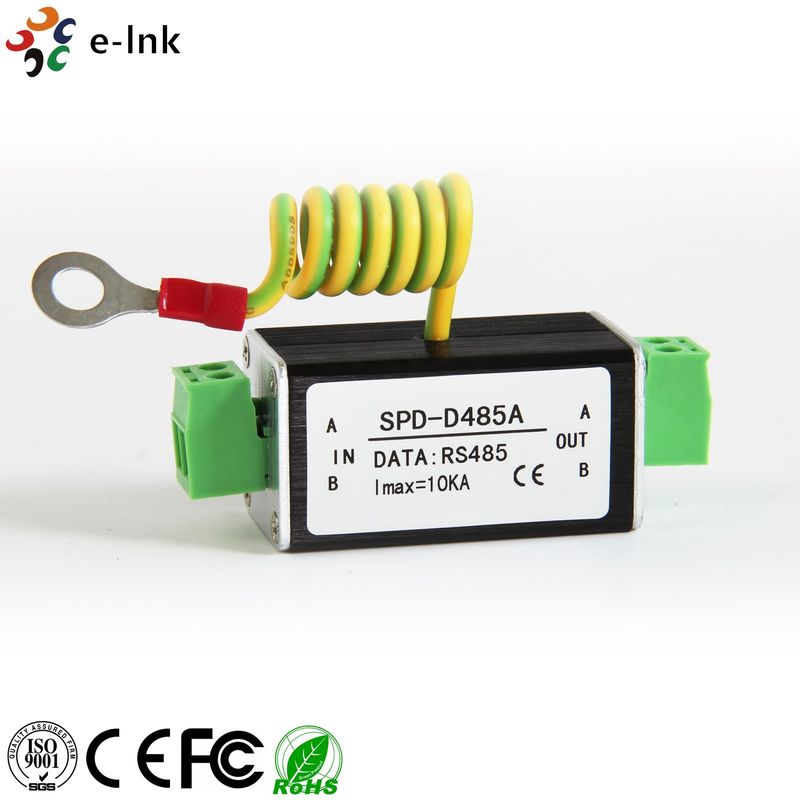

Overview
For intelligent control system, twisted pair of data signals over-voltage protection. Them from over-voltage sensors, operating over-voltage and electrostatic discharge caused by damage.
Technical Indexes
|
Model Parameters |
SPD-D485A |
|
Signal |
RS485 |
|
Nominal voltage U n |
≤5V |
|
Maximum continuous operating voltage U c |
6.8 |
|
Nominal discharge current (8/20μs) I n |
5KA |
|
Maximum Flow Capacity (8/20μs) I max |
10KA |
|
Limit voltage U r |
≤8.8V |
|
Response time T a |
≤1ns |
|
transfer rate V s |
10Mbps |
|
Insertion loss A E |
≤0.5dB |
|
Protected lines |
Two-wire (1 pair) |
|
Dimension (mm) |
48*25*25mm |
|
Model |
Description |
|
LNK-SSP |
|
