उत्पाद का विवरण
Place of Origin: China
ब्रांड नाम: E-link
प्रमाणन: CE，FCC
Model Number: LNK-PS208
दस्तावेज: E-link LNK-GYT208 Industria....0.pdf
भुगतान और शिपिंग की शर्तें
Minimum Order Quantity: 1pcs
मूल्य: बातचीत योग्य
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
Size: |
159mm×110mm×46.5mm |
Weight: |
575g |
Operating temperature: |
-40℃~85℃ |
CasingCasingCasingCasingCasing: |
Aluminum Case |
Mounting Options:: |
DIN-Rail / Wall-mount |
Color: |
Black |
Size: |
159mm×110mm×46.5mm |
Weight: |
575g |
Operating temperature: |
-40℃~85℃ |
CasingCasingCasingCasingCasing: |
Aluminum Case |
Mounting Options:: |
DIN-Rail / Wall-mount |
Color: |
Black |
Product Advantages
► Provide 1*1000Mbps uplink fiber port and 1*1000Mbps Ethernet port, 8*1000Mbps downlink Ethernet ports. 1~8 ports of PoE Ethernet switch support IEEE802.3af/at standard, which could provide Max. 30W supply power for infrared camera with large consumption;
► Reset button of 8 PoE ports which can easily solve problems of IP camera crash
► Under one Key CCTV model, the 1~8 downlink ports can only communicate with uplink ports, the speed of downlink port is limited in 10Mbps and the transmission distance is up to 250m ;
► One Key CCTV mode is off by default, but can start while dialing the switch key on the front board to reset the product;
Overview

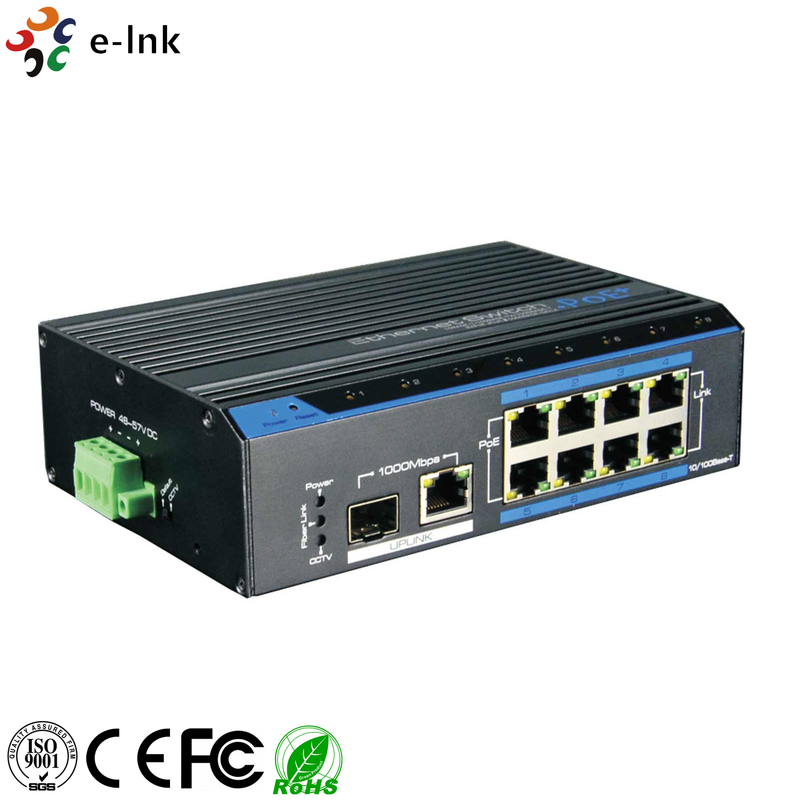

LNK-GYT208 Series is 8 ports PoE Ethernet Switch is an unmanaged Ethernet switch. This product provides 1 Gigabit uplink Ethernet port and 1 Gigabit uplink fiber port and 8* 100Mbps PoE Ethernet ports, support IEEE802.3af/at power supply standard. The product is widely used in security surveillance and network project.
Technical Indexes
|
Item |
Description |
||||
|
Power |
Power Supply |
Power Adaptor |
|||
|
Voltage range |
DC48V~57V |
||||
|
Consumption |
＜5W |
||||
|
Ethernet |
Ethernet Port |
1～8 ports: default mode: 10/100BASE-TX;CCTV mode:10BASE-T; UPLINK Ethernet port:10/100/1000BASE-T; SFP:1000BASE-X |
|||
|
Transmission Distance |
Downlink port: default mode: 0～150m; CCTV mode: 0~250m Uplink port: 0～150m SFP: depends on SFP module performance |
||||
|
Transmission Medium |
Cat5e/6 network cable |
||||
|
PoE Protocol |
IEEE802.3af/at protocol |
||||
|
PoE Power Supply |
End-span |
||||
|
Ethernet Exchange Specification |
Ethenet Standard |
IEEE802.3 10BASE-T; IEEE802.3u 100BASE-TX; IEEE802.3ab 1000BASE-TX; IEEE802.3z 1000-SX/LX; IEEE802.3 X |
|||
|
Switch Capacity |
5.6Gbps |
||||
|
Packet Forwarding Rate |
4.12Mpps |
||||
|
Packet Buffer |
1M |
||||
|
MAC Address |
8K |
||||
|
Status |
Power Indicator Light |
Front board: 1 pc red Light Side board: 1 pc red Light |
|||
|
CCTV Indicator Light |
1 pc(green), the green light on Indicates CCTV Mode start |
||||
|
Optical Port LED indicator |
1pc SFP port working indicator light: green |
||||
|
Uplink Ethernet Port Indicator |
1 pc network working status: green light on RJ 45 port |
||||
|
Downlink Ethernet Port Indicator |
1～8 ports : green light indicates network status, yellow light indicates PoE status |
||||
|
Reset |
PoE Reset Button |
Total 8 pcs, corresponding to 1～8 ports, PoE Function reset |
|||
|
|
Reset |
1 pc, machine reset |
|||
|
Protection Level |
Port Lighting Protection |
6KV , Per: IEC61000-4-5 |
|||
|
ESD |
6KV/ 8KV , Per: IEC61000-4-2 |
||||
|
Working Environment |
Working Temperature |
-40℃~85℃ |
|||
|
Storage Temperature |
-40℃~85℃ |
||||
|
Humidity(Non- |
0~95% |
||||
|
|
Dimension(L*W*H) |
159mm×110mm×46.5mm |
|||
|
Out Shell |
Aluminum |
||||
|
Color |
Black |
||||
|
Weight |
575g |
||||
|
Power/Distance |
Distance |
100m |
150m |
200m |
250m |
|
Power |
26W |
24W |
23W |
21W |
|
|
Model |
Description |
|
LNK-PS208 |
Unmanaged Indutrial Ethernet PoE Switch: 1x10/100/1000M RJ45 + 1x1000M SFP Uplink, 8x10/100M PoE, IEEE802.3at/af standard, PoE ports support 250m transmission distance in 10M, SFP Fiber Ports, not including SFP modules, -40℃~75℃ working temperature |
