उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: E-link
प्रमाणन: iso9001
Model Number: LNK-3GSDI-4V1DT
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1 टुकड़ा
मूल्य: negociate
पैकेजिंग विवरण: एसडीआई फाइबर एक्सटेंडर मानक कार्टन पैकेजिंग
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000/Month
Model: LNK-3GSDI-4V1DT
Features

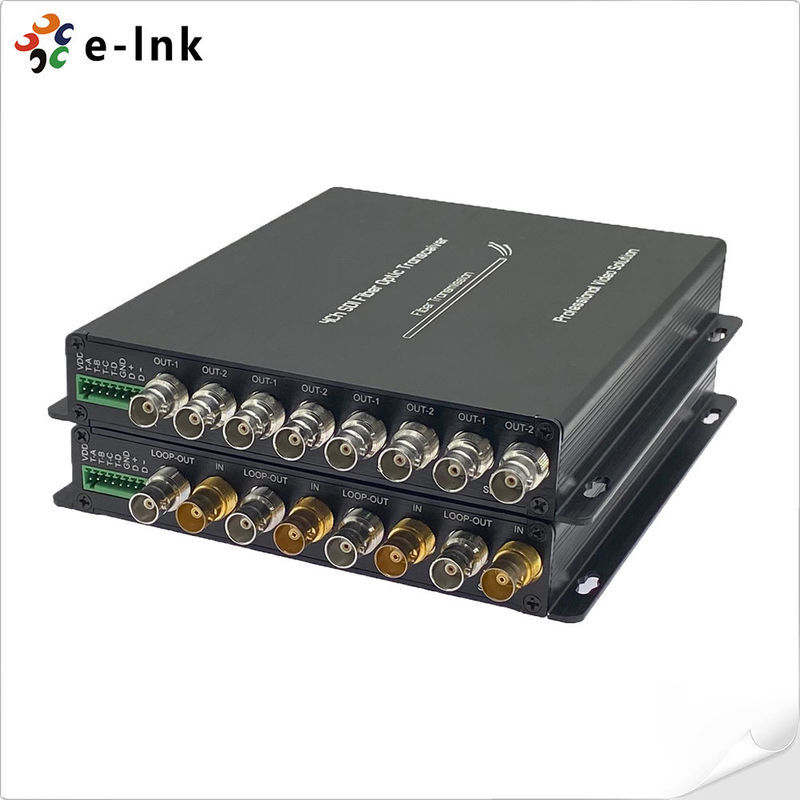

► 4 channel 3G/HD-SDI video transmission over optic fiber
► Automatic cable equalization to ensure signal integrity
► Automatic reclocking 270Mbit/s - 1.48Gbit/s-3Gbit/s
► Directly compatible with 3G/HD-SDI camera systems and support 4Ch Loop output
► Long transmission up to 20 km (12.5miles) (Other distance Optional)
► Supports 4Ch Tally
► Full digital non-compression broadcast level transmission;
► Support 1Ch backward RS485 and 4Ch Tally;
► Working temperature range (-10℃~+55℃)
Technical Indexes
| SDI Input | SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI, DVB-SSI and Telecom/Datacom |
| 270Mbit/s - 1.48Gbit/s – 3Gbit/s | |
| Input number: 4 | |
| Reflection loss: >15DB | |
| Equilibrium: 0-150m @3Gb/s | |
| Connector: BNC | |
| Optics | Channel: 1 |
| Type: single-mode | |
| Transmission distance: 20km (Other distance Optional) | |
| Reflection loss: > 15dB | |
| Dithering: < 0.2UI | |
| Connector: FC/UPC (SC, LC, ST optional) | |
| SDI Output | Output number:4 |
| Signal level: 800mV nominal | |
| Rise/fall time: 200ps indication | |
| Overshoot: < 10% amplitude | |
| Reflection loss: >15dB | |
| Dithering: < 0.2UI | |
| Connector: 75Ω BNC | |
| Data | 1Ch RS-485 (full/half duplex) and support NRZ, RZI and Manchester |
| Max. 57600bps for RS485 | |
| Connector: Industrial standard screw terminal | |
| 4Ch Tally: A, B , C, D | |
| Power and environmental indication | Operating temperature: -10℃～＋55℃ |
| Power Input: 1A@12VDC | |
| EMI/RFI: meet FCC Part 15 Class A, EU EMC standard | |
| Average time trouble-free: >100000 hours | |
| SDI video format supports |
625/25PAL; 525/29.97NTSC; 525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94; |
Application
ordering information
| LNK-HDSDI-4V1D4T | 4-Ch HD-SDI Video with Loop output + 1Ch backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs |
| LNK-3GSDI-4V1D4T | 4-Ch 3G-SDI Video with Loop output + backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs |
