उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: E-link
मॉडल संख्या: LNK-HDMI श्रृंखला
दस्तावेज: E-link LNK-HDMI Series HDMI...d).pdf
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1 पीसी
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: कार्टन पैकेजिंग
प्रसव के समय: 3-12 कार्य दिवस
भुगतान शर्तें: एल/सी, टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल
आपूर्ति की क्षमता: 1000 पीसीएस/माह
RS 232 Data bits: |
8 bits |
Device size: |
109.5*152*29.3mm(length*width*height) |
Fiber port: |
LC |
Fiber module: |
SFP single mode |
Fiber wavelength: |
1550/1310nm |
Fiber band width: |
3Gbps |
RS 232 Data bits: |
8 bits |
Device size: |
109.5*152*29.3mm(length*width*height) |
Fiber port: |
LC |
Fiber module: |
SFP single mode |
Fiber wavelength: |
1550/1310nm |
Fiber band width: |
3Gbps |
Advantages
► Full digital, Uncompressed HD optical fiber transmission
► Support Full HD 1920*1200@60Hz
► The attenuation of optical module SFP low to -3db
► 1 channel analog audio(3.5mm)
► Support HDMI 1.3b Protocal
► Support KVM
► Automatic identification and configure display mode
► Automatic equalization inside, stable and clear graphics.
► ESD protection circuit inside, to ensure the ESD damage.
► Easily to installation, plug and play, no need to set up
Overview

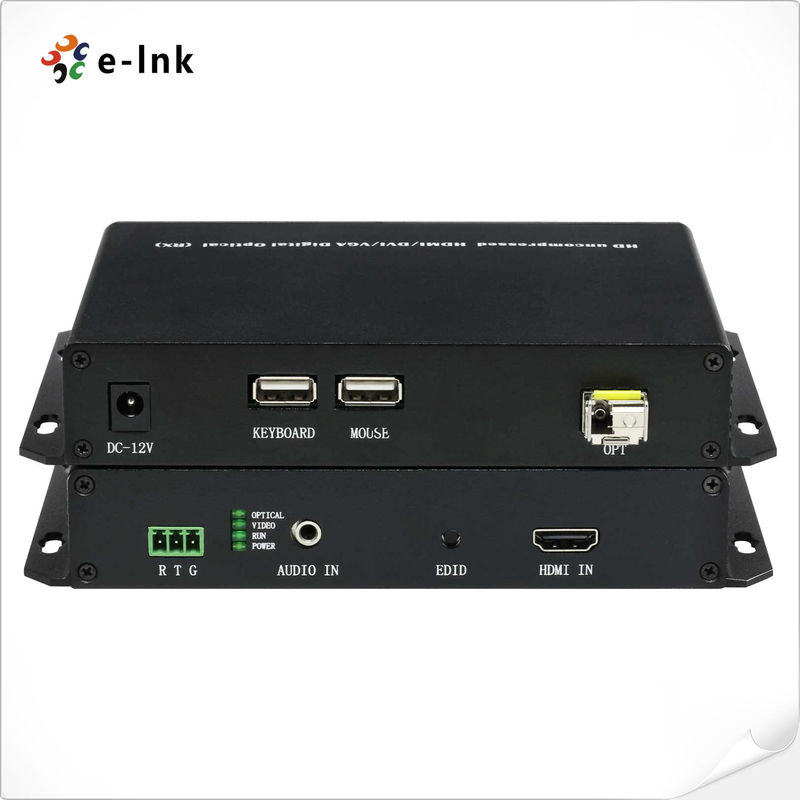

The LNK-HDMI Series HDMI Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced, It can transfer signal source(computer signal source, VGA signal source high digital DVD/DVR) to long distance terminal easily, with strong anti-interference performance, ensure the signal completed and stable.
Order Information
|
Item |
Description |
|
LNK-HDMI-100 |
HDMI to Fiber Converter: 1-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
|
|
HDMI to Fiber Converter: 2-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
|
LNK-HDMI-400 |
HDMI to Fiber Converter: 4-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
|
LNK-HDMI-800 |
HDMI to Fiber Converter: 4-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
Application
