उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: E-link
प्रमाणन: CE, RoHS, FCC, ISO9001
मॉडल संख्या: एलएनके-एचडीई-60 केवीएम
दस्तावेज: E-link 60M 1080P HDMI KVM E....0.pdf
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1pcs
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: औद्योगिक पीओई स्विच मानक कार्टन पैकेजिंग
प्रसव के समय: 7-10 कार्य दिवस
भुगतान शर्तें: एल/सी, टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल
आपूर्ति की क्षमता: 100000 पीसी/माह
Operating Temperature:: |
-5℃ ~ +70℃ |
Power supply: |
DC 12V |
Size(L-W-H): |
82*85*17mm |
वारंटी: |
1 साल की मुफ्त वारंटी |
यूटीपी संचरण दूरी: |
CAT6 अधिकतमः 60 मीटर |
संकल्प: |
अधिकतम: 1920x1080@60Hz (पिछड़े-संगत) |
Operating Temperature:: |
-5℃ ~ +70℃ |
Power supply: |
DC 12V |
Size(L-W-H): |
82*85*17mm |
वारंटी: |
1 साल की मुफ्त वारंटी |
यूटीपी संचरण दूरी: |
CAT6 अधिकतमः 60 मीटर |
संकल्प: |
अधिकतम: 1920x1080@60Hz (पिछड़े-संगत) |
Product Advantages
· Aluminum shell, compact size and slim design, more beautiful than iron shell, strong anti-interference, Wall-mounted type is more convenient;
· Uncompressed transmits HDMI video and audio signals up to 60M over a single CAT6 cable;
· Support video resolution up to 1920*1080@60Hz, 3D signals;
· Support keyboard and mouse remoter control;
· Support local HDMI loop-out;
· Build-in EDID function, can match many kinds display device;
· Support POC unilateral power supply, need 1pc 12V power to TX
· Compliance with HDMI 1.3 and HDCP 1.3 standard;
Overview

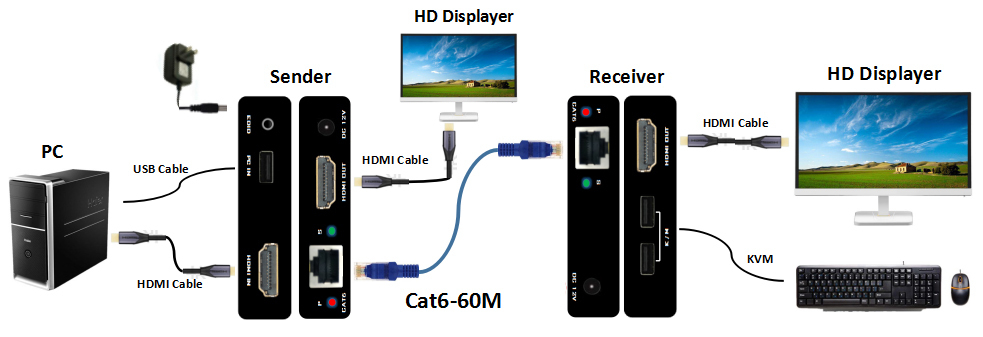

This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension uncompressed full HD 1080p@60Hz HDMI signal via CAT6/6A/7 network cable, the transmission distance is up to 60 meters with zero latency. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device. It supports keyboard & mouse remote control and local loop-out, also it supports PoE to power the receiver
Technical Indexes
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 1.3, HDCP 1.3 |
|
Maximum Pixel Clock |
165MHz |
|
|
Max Data Rate |
6.75Gbps |
|
|
Resolution |
Max: 1920X1080@60Hz(backward-compatible) |
|
|
Connector |
HDMI-A |
|
|
Impedance |
100Ω |
|
|
USB |
Interface |
PC: Standard MINI-USB or PS2 K/M: Standard USB, PS2 (optional) |
|
USB Signal |
HID Signal |
|
|
UTP |
Interface |
RJ45 |
|
Transmission Distance |
CAT6 Max: 60m |
|
|
Other |
Power Supply |
DC 12V |
|
Power Dissipation |
Max: 4W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
82*85*17mm |
|
|
The warranty |
1 Year Free Warranty |
|
Ordering Information
|
Part No |
Description of product |
|
LNK-HDE-60KVM |
60M 1080P HDMI KVM Extender With Loop-out |
