उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: E-link
प्रमाणन: CE, RoHS, FCC, ISO9001
मॉडल संख्या: एलएनके-डीकेएम100-टी
दस्तावेज: E-link 4K DVI KVM over Cat6....0.pdf
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1pcs
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: औद्योगिक पीओई स्विच मानक कार्टन पैकेजिंग
प्रसव के समय: 7-10 कार्य दिवस
भुगतान शर्तें: एल/सी, टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल
आपूर्ति की क्षमता: 100000 पीसी/माह
परिचालन तापमान:: |
-5 ℃ ~ +70 ℃ |
Power dissipation: |
MAX 6W |
बिजली की आपूर्ति: |
डीसी 5 वी / 2 ए |
संकल्प: |
1920X1080P@60Hz, 4K*2K |
संचालन आर्द्रता: |
5% ~ 90% |
गारंटी: |
दो वर्ष |
परिचालन तापमान:: |
-5 ℃ ~ +70 ℃ |
Power dissipation: |
MAX 6W |
बिजली की आपूर्ति: |
डीसी 5 वी / 2 ए |
संकल्प: |
1920X1080P@60Hz, 4K*2K |
संचालन आर्द्रता: |
5% ~ 90% |
गारंटी: |
दो वर्ष |
Product Advantages
· Transmits DVI video signals up to 100m over a single CAT6 cable
· Support video resolution up to 1920*1080P@60Hz and 4K*2K
· Support HD BaseT technology
· Support KVM, keyboard and mouse signal transmission
· Support RS232 signal bi-directional transmission, baud rate self-adaptive
· Compliance with DVI 1.0 and HDCP 1.2 standard
· High compatibility, can auto-match source and display device
· Built-in automatic adjustment system, make the image smooth, clear and stable
· Built-in ESD protection system
· Simple to install, plug and play
Overview

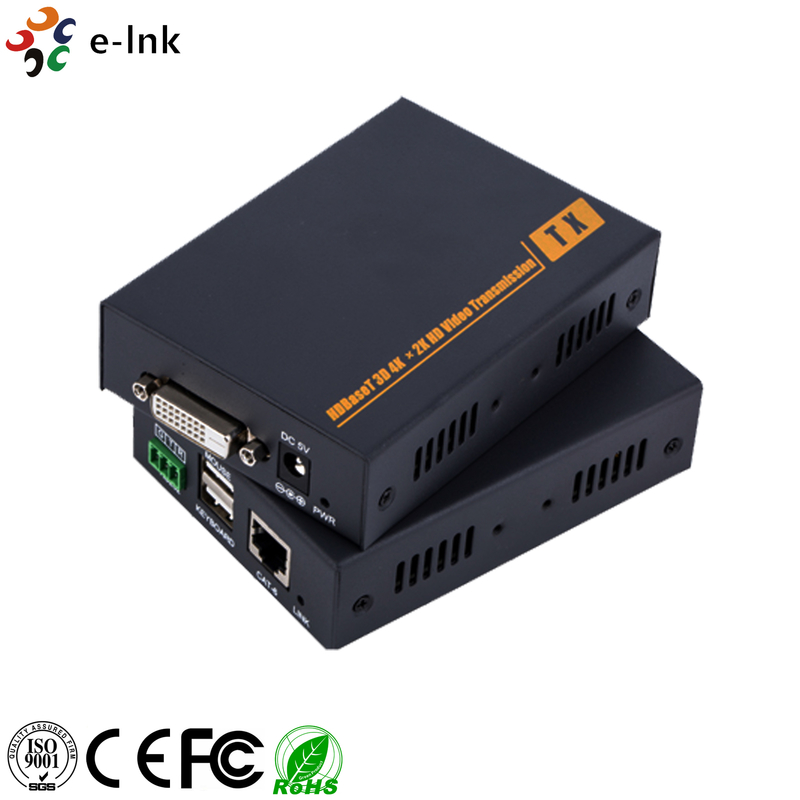

The DVI KVM extender provides extension of DVI signals long distances over a single CAT6 cable, it supports high resolution up to 4K*2K, RS232 and KVM signal transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Technical Indexes
|
Parameter |
Description |
|
|
Video |
Standards |
DVI 1.0; HDCP 1.2 |
|
Maximum pixel clock |
165MHz |
|
|
Maximum data rate |
10.2Gbps |
|
|
Resolution |
1920X1080P@60Hz, 4K*2K |
|
|
Connector |
DVI-D |
|
|
Impedance |
100Ω |
|
|
RS232 |
Interface |
Industrial terminal |
|
Signal direction |
Bi-directional |
|
|
Baud rate |
Self-adaptive, Max: 115200bps |
|
|
Data bits |
8 |
|
|
KVM |
Interface |
PC: MINI-USB Keyboard and mouse: USB-A |
|
Ethernet |
Interface |
RJ45 |
|
Transmission distance |
1080P: CAT6---100m 4K*2K: CAT6---70m |
|
|
Other |
Power supply |
The power adapter: DC 5V/2A |
|
Power dissipation |
MAX 6W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
105*76*27mm |
|
|
Warranty |
2-year |
|
|
Item |
Description |
|
LNK-DKM100-T |
DVI (1080P@60Hz, 4K*2K) KVM Extender over CAT6/ 7 Kit Transmitter, 100 meters |
|
LNK-DKM100-R |
DVI (1080P@60Hz, 4K*2K) KVM Extender over CAT6/ 7 Kit Receiver, 100 meters |
