उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: E-link
प्रमाणन: CE, RoHS, FCC, ISO9001
मॉडल संख्या: LNK-EC1100
दस्तावेज: LNK-ECP1100 Series Ethern....0.pdf
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1pcs
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: औद्योगिक पीओई स्विच मानक कार्टन पैकेजिंग
प्रसव के समय: 7-10 कार्य दिवस
भुगतान शर्तें: एल/सी, टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल
आपूर्ति की क्षमता: 100000 पीसी/माह
वज़न: |
195 ग्राम |
Dimension (mm): |
94.5x71.5x26.5(mm) |
Maximum Power: |
Up to 30W |
परिचालन तापमान:: |
-20~+70°C |
वज़न: |
195 ग्राम |
Dimension (mm): |
94.5x71.5x26.5(mm) |
Maximum Power: |
Up to 30W |
परिचालन तापमान:: |
-20~+70°C |
Product Advantages
Overview

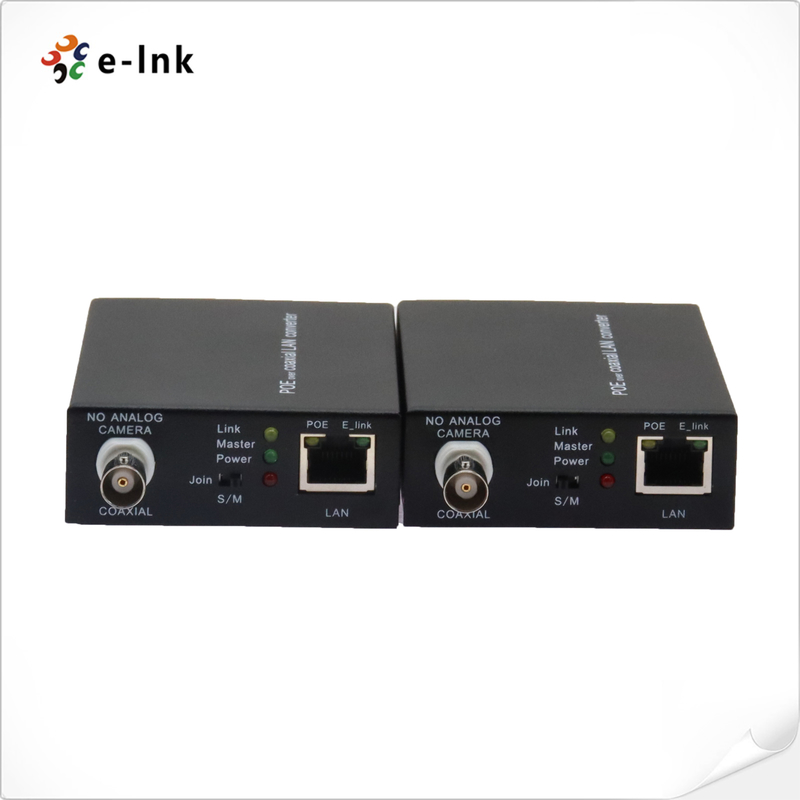

The LNK-ECP1100 Ethernet Over Coax Extender with PoE+ is a new designed Ethernet Extender Device. This Device is designed to extend Ethernet Network signal and Power over existing coaxial cable, and able to live transmit multi-channel Power + Network date signal, the Max distance is up to 300meters. Network max baud-rate is up to 100Mbps. It has excellent lightning protection and Anti-interference.
Technical Indexes
|
Name |
Model/Type |
Specification |
|
Product |
Model No. |
LNK-ECP1100(PoE) and LNK-EC1100(Non-PoE) |
|
Coaxial-line |
Standards |
Base on up-to-date advanced IEEEP1901 for Ethernet over coax (EOC) Application with raw data Rates up to 90Mbps |
|
Connector |
Coaxial BNC |
|
|
Line Rates |
Phy Rate |
Maximum Link Rates 90Mbps |
|
Ethernet Interface |
Standards |
SO/IEC802.3 (ANSI/IEEE802.3i) 10BASE-T Ethernet |
|
IEEE802.3u, 100BASE-TX, Fast Ethernet |
||
|
IEEE802.3ab 100BASE-T |
||
|
PHY Connection |
KSZ8041,10BASE-T,100BASE-T,With Auto-detect Auto MDIX |
|
|
Connector |
RJ-45 Connector for 10BASE-T, 100BASE-TX Ethernet Interface |
|
|
LED Indicators |
RJ45-DATA |
Data Link/Green |
|
RJ45-PoE |
PoE On/Yellow |
|
|
PWR |
56V DC Link/Red |
|
|
BNC Join |
CS-Product link/Orange |
|
Model |
Description |
|
LNK-ECP1100 |
Ethernet over Coaxial Converter with PoE, 300m transmission distance, including Master unit and Slave unit. (not including power supply adapter) |
|
LNK-EC1100 |
Ethernet over Coaxial Converter, 1000m transmission distance, Including Master unit and Slave unit. (not including power supply adapter) |
