उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: E-link
प्रमाणन: ISO9001
मॉडल संख्या: ZP-HINJ301-90
दस्तावेज: ZP-HINJ301-90 Industrial Po...et.doc
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1 पीसी
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: कार्टन पैकेजिंग
प्रसव के समय: 3-12 कार्य दिवस
भुगतान शर्तें: एल/सी, टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल
आपूर्ति की क्षमता: 1000 पीसीएस/माह
Mounting Options: |
DIN-Rail / Wall-mount |
Dimensions (WxDxH): |
95 x 70x 36mm |
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
Input Power: |
12~48VDC (Terminal Block) |
Casing: |
IP40 Aluminum Case |
Mounting Options: |
DIN-Rail / Wall-mount |
Dimensions (WxDxH): |
95 x 70x 36mm |
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
Input Power: |
12~48VDC (Terminal Block) |
Casing: |
IP40 Aluminum Case |
Advantages
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)
► Support 95W LTPoE++ Power Sourcing Equipment
► Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
► Support 10/100/1000Base-TX
► Extensive LED indicators for PoE diagnostics
► 12~48V DC wide range power input with power booster function
► Up to 95-watt PoE budget (48VDC), 95-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
► Supports DIN-Rail and Wall-mount installation
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temp
Overview

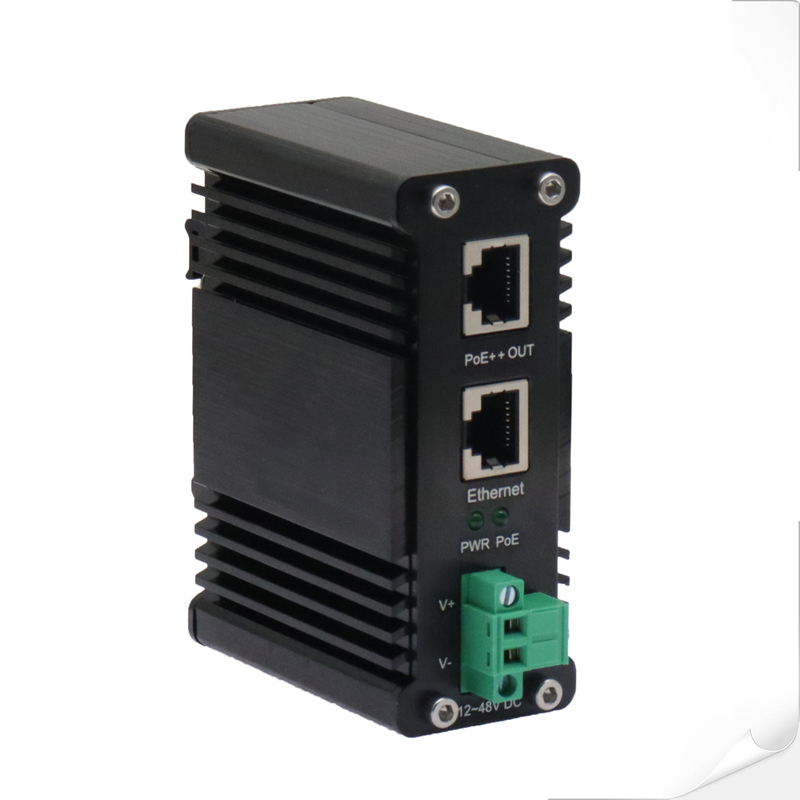

The ZP-HINJ301-90 product is an Industrial hardened Gigabit single-port PoE+ IEEE 802.3bt / LTPoE++ 95W 10/100/1000Base-TX PoE Injector with 12~48V DC Input and Voltage Booster. It allows you to connect the PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. It provides 95W PoE output.
Ordering Information
|
Model |
Description |
|
ZP-HINJ301-90 |
Hardened Gigabit 1-port Ethernet Input + 1-port 95W PoE++ Output Injector with 12~48V DC wide range power input |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |
Application
