उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: E-link
प्रमाणन: ROHS,FCC,CE
मॉडल संख्या: एलएनके-आईएमसी016जी
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1 टुकड़ा
मूल्य: 49USD~59USD
पैकेजिंग विवरण: स्विच मानक निर्यात पैकेज
प्रसव के समय: 3-12 कार्य दिवस
भुगतान शर्तें: एल/सी, टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल
आपूर्ति की क्षमता: 1000 पीसी/महीना
कीवर्ड: |
औद्योगिक ईथरनेट स्विच |
तापमान: |
-40 से +80°C (-40 से 176°F) |
झलार: |
एल्यूमीनियम का मामला |
डब्ल्यू × एच × डी: |
150 x 115 x 50 मिमी |
वज़न: |
0.6 किग्रा |
इंस्टालेशन: |
दीन-रेल माउंटिंग, वॉल माउंटिंग |
कीवर्ड: |
औद्योगिक ईथरनेट स्विच |
तापमान: |
-40 से +80°C (-40 से 176°F) |
झलार: |
एल्यूमीनियम का मामला |
डब्ल्यू × एच × डी: |
150 x 115 x 50 मिमी |
वज़न: |
0.6 किग्रा |
इंस्टालेशन: |
दीन-रेल माउंटिंग, वॉल माउंटिंग |

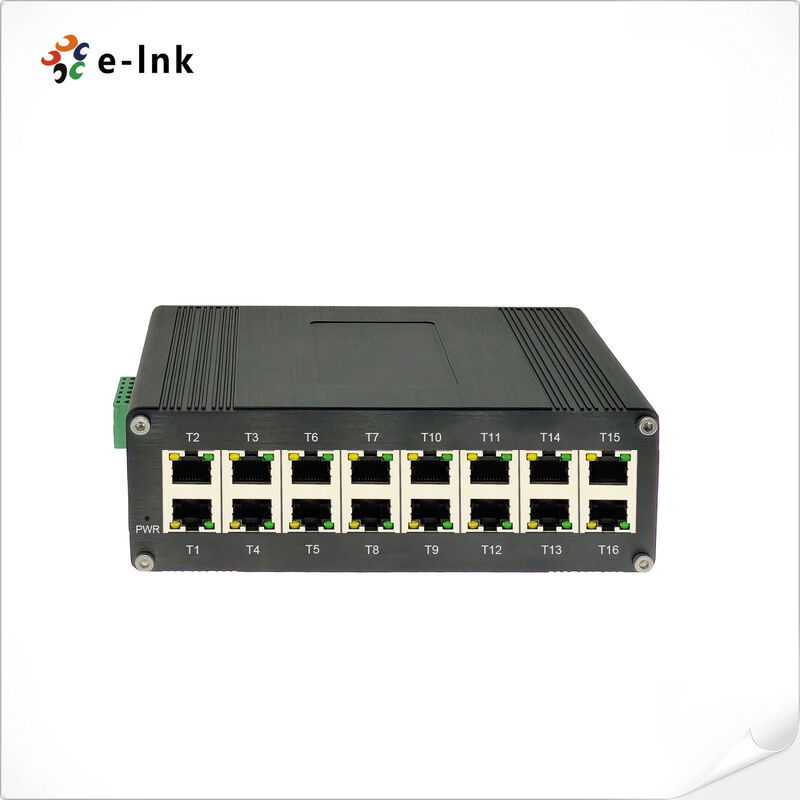

Industrial 16-port 10/100/1000BASE-T Ethernet Switch
Industrial 16-port 10/100/1000BASE-T Ethernet Switch Advantages
► 16 10/100/1000Base-TX ports
► RJ45 Port Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail installation
► Redundant 12～48V DC Power Inputs
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial 16-port 10/100/1000BASE-T Ethernet Switch Overview
LNK-IMC016G is an 16 ports 10/100/1000Base-TX Hardened Ethernet Switch. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.
The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
Industrial 16-port 10/100/1000BASE-T Ethernet Switch Technical Indexes
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3z 1000BASE-X |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
1M bits |
|
Switch Fabric: |
40 Gbps |
|
Max Packet Length: |
10K Bytes |
|
Address Table Size: |
16K MAC Addresses |
|
Interface |
|
|
Connector: |
16 x RJ45 |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48V DC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
5W Max. |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
Ethernet (Per Port): |
Link/Activity |
|
Dimensions (WxDxH): |
150 x 115 x 50 mm |
|
Weight: |
0.6Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55024:2010 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
Industrial 16-port 10/100/1000BASE-T Ethernet Switch Ordering Information
