उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: E-link
प्रमाणन: ISO9001, CE, ROHS, FCC
मॉडल संख्या: Lnk-gpoe-e1
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1 टुकड़ा
मूल्य: US$40-US$50
पैकेजिंग विवरण: एचडीएमआई फाइबर पीओई एक्सटेंडर स्टैंडर्ड कार्टन पैकेजिंग
प्रसव के समय: 1-3 कार्य दिवस
भुगतान शर्तें: टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल
आपूर्ति की क्षमता: 1000/महीना
कनेक्टर प्रकार: |
1x RJ45 PoE इनपुट पोर्ट; 1x RJ45 PoE आउटपुट पोर्ट |
नेटवर्क माध्यम: |
CAT5 या अधिक UTP (≤100 मीटर) |
बैंडविड्थ: |
8 जीबीपीएस |
मैक पता तालिका: |
1k |
पोई पोर्ट पावर: |
15.4w |
गारंटी: |
1 साल की वारंटी |
कनेक्टर प्रकार: |
1x RJ45 PoE इनपुट पोर्ट; 1x RJ45 PoE आउटपुट पोर्ट |
नेटवर्क माध्यम: |
CAT5 या अधिक UTP (≤100 मीटर) |
बैंडविड्थ: |
8 जीबीपीएस |
मैक पता तालिका: |
1k |
पोई पोर्ट पावर: |
15.4w |
गारंटी: |
1 साल की वारंटी |

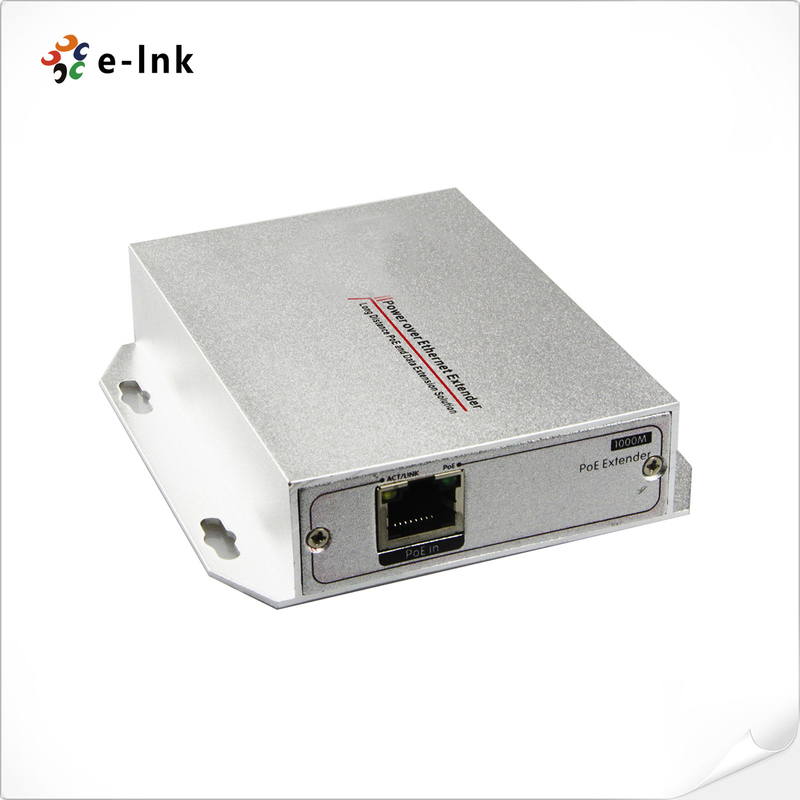

Model : LNK-GPoE-E1
Product Description & Overview
The LNK-GPoE-E1 represents a breakthrough in Power over Ethernet extension technology, delivering
reliable 10/100/1000M network connectivity with full 15.4W PoE power transmission. This advanced
Gigabit PoE extender effectively doubles the standard Ethernet transmission distance from 100 meters
to 200 meters using standard CAT5e/6 UTP cables, while maintaining complete IEEE 802.3af compliance
for power delivery.
Engineered for maximum deployment flexibility, this professional-grade PoE extender operates without
requiring additional power supplies or complex configuration, featuring true plug-and-play installation.
The innovative signal enhancement technology ensures stable data transmission and consistent power
delivery across extended distances, supporting multiple cascade connections to achieve triple or quadruple
extension lengths for demanding network applications.
Ideal for large-scale deployments, this high-performance PoE extension solution finds perfect application
in intelligent transportation systems (ITS), safe city projects, and comprehensive wireless city infrastructure.
The device demonstrates exceptional reliability in industrial security surveillance, highway monitoring systems,
and enterprise network expansions. Its efficient power management system and cost-effective operation make
it particularly suitable for educational campus networks, video conference systems, building intercom installations,
and distributed wireless communication networks where both extended reach and power delivery are critical
operational requirements.
Key Features Bullets
Extended PoE Transmission Range
Doubles standard Ethernet distance to 200 meters using CAT5e/6 cables
Full IEEE 802.3af Compliance
Delivers 15.4W PoE power with automatic device detection and protection
Zero-Configuration Operation
True plug-and-play installation requires no external power or setup
Daisy-Chain Expansion Capability
Multiple units can be connected for extended network coverage
Compact Wall-Mount Design
Space-efficient housing enables flexible installation in various environments
Simultaneous Data & Power Transmission
Maintains both network connectivity and PoE power over extended distances
Advanced Safety Protection
Intelligent circuitry prevents damage from installation errors
Gigabit Network Compatibility
Supports 10/100/1000Mbps speeds for high-bandwidth applications
Technical Specifications & Indexes
|
Product Name |
10/100/1000M PoE Extender 15.4W - Extend 100 Meters |
|
Product Model |
LNK-GPoE-E1 |
|
Description |
10/100/1000M PoE extender, extends the data transmission from 100m to 200m |
|
Connector Type |
1x RJ45 PoE input port; 1x RJ45 PoE output port |
|
Network Medium |
Cat5 or more UTP(≤100 meter) |
|
Bandwidth |
8Gbps |
|
MAC Address Table |
1K |
|
Network Protocol |
IEEE 802.3i 10BASET; IEEE 802.3u 100BASET; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af |
|
PoE Port |
1x RJ45 PoE input port; 1x RJ45 PoE output port |
|
PoE Port Power |
15.4W |
|
PoE Standard |
IEEE802.3af |
|
PoE Power Supply Type |
Default: end-span(1/2+, 3/6-) . Optional: Mid-span(4/5+, 7/8- ) |
|
Certifications |
FCC Class A, CE, RoHS |
|
LED Display |
ACT/LINK: Network status , PoE: PoE working status |
|
Product Size |
74.5x103.5x25.5mm |
|
Working Environment |
Operating temperature: 0 to 55° C; Storage temperature: -20 to 75°C; Working Humidity: 10%～90%, non-condensing |
|
Warranty |
1 year warranty |
Ordering information
|
Model |
Description |
|
|
10/100/1000M PoE Extender 15.4W, extends the data transmission from 100m to 200m |
Application Scenarios
Extending network coverage for large-scale security surveillance systems
Supporting intelligent transportation systems with extended PoE connectivity
Enabling long-distance network deployment in industrial automation
Providing campus network expansion for educational facilities
Facilitating wireless network coverage in large commercial complexes
