उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: E-link
प्रमाणन: FCC Class A, CE, RoHS
मॉडल संख्या: LNK-IPE104-90
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1 टुकड़ा
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: औद्योगिक POE स्विच स्टैंडर्ड कार्टन पैकेजिंग
प्रसव के समय: 7-10 कार्य दिवस
भुगतान शर्तें: एल/सी, टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल
आपूर्ति की क्षमता: 100000pcs/महीना
उत्पाद आकार: |
78 x 27 x 18 मिमी |
परिचालन तापमान: |
0°C ~ 60°C (32° ~ 140°F) |
वज़न: |
46 ग्रा |
बढ़ते विकल्प: |
डेस्कटॉप |
झलार: |
एल्यूमीनियम केस |
उत्पाद आकार: |
78 x 27 x 18 मिमी |
परिचालन तापमान: |
0°C ~ 60°C (32° ~ 140°F) |
वज़न: |
46 ग्रा |
बढ़ते विकल्प: |
डेस्कटॉप |
झलार: |
एल्यूमीनियम केस |
Product Advantages
► 1 x 10/100/1000M/2.5Gbps RJ45 Slot + 1 x TYPE-C USB3.0 Slot
► Supports Gigabit networking over USB 3.0
► IEEE 802.3, 802.3u, 802.3ab, 802.3bz (10BASE-T, 100BASE-TX, 1000BASE-T, 2.5G BASE-T) compatible
► Powered directly from the USB ports
► Crossover Detection & Auto-Correction (Auto MDIX)
► IEEE 802.1Q VLAN Tagging support
► Jumbo Frame support
► Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload
► Activity and Link LED indicators
► Compact, lightweight design for maximum portability
Overview

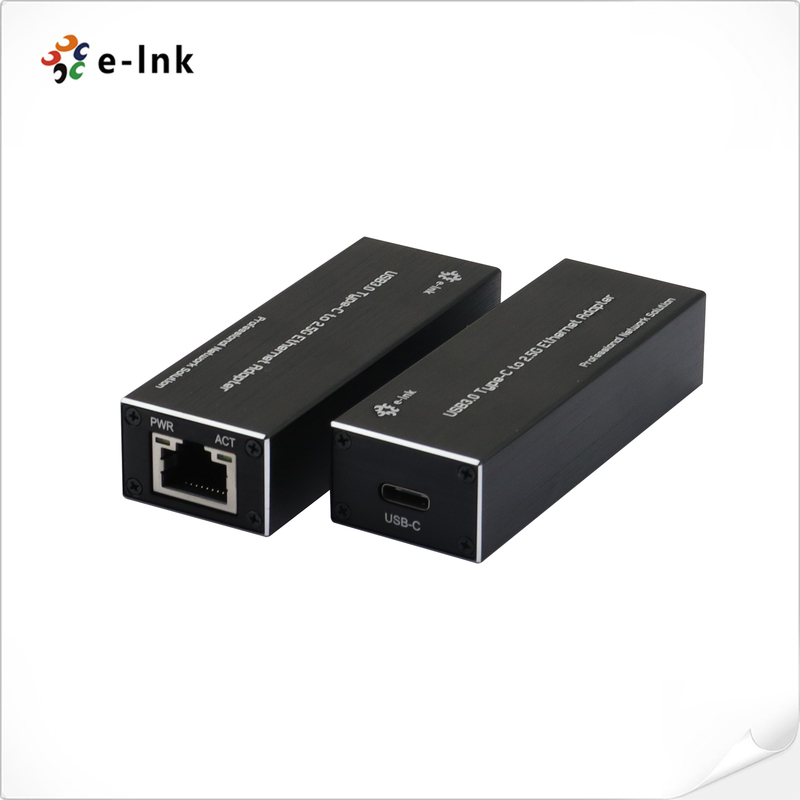

E-link LNK-TCU2500 Series USB-C Network Interface Card designed for Laptop/PC/Tablet that with Type-C interface and need to access Fast and Stable internet through UTP Cable. With this USB-C LAN Card, Network Connection is more stable and quicker than Wifi access. It can offer 2.5Gbps Internet access, It provides up to 2.5Gbps full-duplex bandwidth capacity. In addition, with advanced functions like VLAN filtering packet processing, the adapter provides added performance, flexible configuration and secure networking for users in a standard-based environment.
Technical Indexes
|
Standards: |
IEEE 802.3 10BASE-T |
|
IEEE 802.3u 100Base-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000BASE-T Gigabit Ethernet |
|
|
IEEE 802.3bz2.5GBASE-T Gigabit Ethernet |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE 802.1q VLAN tagging |
|
|
Chipset ID: |
Realtek RTL8156B |
|
Network Transfer Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
3,720,000pps (2.5Gbps) |
|
|
Jumbo Frame Support: |
9K max. |
|
Other: |
Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload |
|
Software |
|
|
OS Compatibility: |
Windows® XP, Vista, 7, 8, 8.1, 10, 11 Windows® Server 2008 R2, 2012, 2012 R2, 2016, 2019 MacOS 10.8 to 10.15, VLAN tagging is currently not supported in macOS Linux Kernel up to 5.17 UEFI UNDI |
|
Interface |
|
|
USB: |
1x USB-C 3.0 |
|
RJ45: |
1 x RJ-45 10/100/1000M/2.5Gbps LAN port |
|
Electrical and Mechanical |
|
|
Power: |
USB Bus Powered |
|
Power Consumption: |
5W Max. |
|
LED Indicators: |
|
|
L/A: |
Link/Activity |
|
Dimensions (LxWxH): |
78 x 27 x 18 mm |
|
Weight: |
46g |
|
Casing: |
|
|
Mounting Options: |
Desktop |
|
Environmental |
|
|
Operating Temperature: |
0°C ~ 60°C (32° ~ 140°F) |
|
Storage Temperature: |
-10° ~ 70°C (14° ~ 158°F) |
|
Relative Humidity: |
5% to 90% non-condensing |
|
MTBF |
> 100,000 hrs |
|
Regulatory Approvals |
|
|
ISO9001, CE, FCC, RoHS |
|
Ordering Information
|
Model |
Description |
|
LNK-IPE104-90 |
Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
