उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: E-link
प्रमाणन: ROHS,FCC,CE
मॉडल संख्या: LNK-NIC-10GE
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1 टुकड़ा
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: कार्टन पैकेजिंग
प्रसव के समय: 3-12 कार्य दिवस
भुगतान शर्तें: टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल
आपूर्ति की क्षमता: 1000 पीसी/महीना
प्रमुख शब्द: |
पोए इंजेक्टर एडाप्टर |
बस प्रकार: |
PCIE V3.0 X4 ， x8, x16 के साथ संगत |
प्रति बंदरगाह डेटा दर: |
10/100/1000M/2.5G/5G/10GBPS डेटा दर |
परिचालन तापमान: |
0 ℃ से 55 ℃ (32 ℉ से 131 ℉) |
(Wxdxh): |
125 x 125 x 20 मिमी |
वज़न: |
90 ग्राम |
प्रमुख शब्द: |
पोए इंजेक्टर एडाप्टर |
बस प्रकार: |
PCIE V3.0 X4 ， x8, x16 के साथ संगत |
प्रति बंदरगाह डेटा दर: |
10/100/1000M/2.5G/5G/10GBPS डेटा दर |
परिचालन तापमान: |
0 ℃ से 55 ℃ (32 ℉ से 131 ℉) |
(Wxdxh): |
125 x 125 x 20 मिमी |
वज़न: |
90 ग्राम |

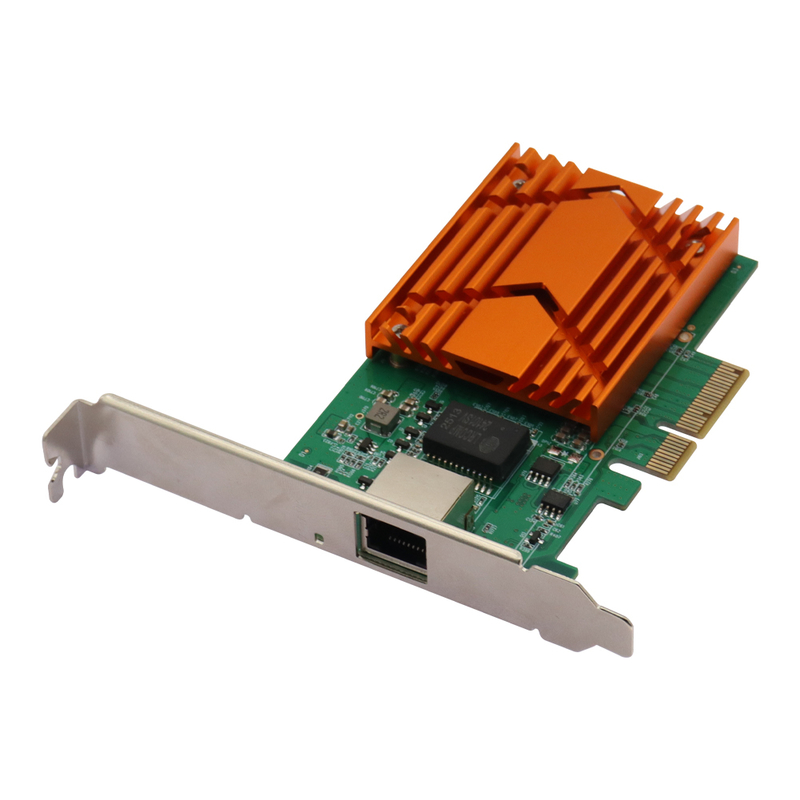

PCIe x4 Single-port RJ45 10G Ethernet Network Adapter
Advantages
► PCIE x 4 Hardware Interface.
► Support systems: Windows, Linux, Ubuntu, etc
► Windows 7/8/8.1/10
► Windows Server 2008 R2/2012 R2/2016 R2/2019 R2
► Linux Stable Kernel version 2.6.32/3.x/4.x or later
► Linux CentOS/RHEL 6.5 / 7.x or later
► Ubuntu 14.x/15.x/16.x or later
► VMware ESX/ESXi 4.x/5.x/6.x or later
► 10/100/1000M/2.5G/5G/10Gbps data rate
► Jumbo frame support up to 16 KB.
► Extensive software support: Windows and Linux drivers; UEFI and PXE remote boot.
► MSI, MSI-X, LSO, RSS and IPv4/IPv6 checksum offload.
► Brown and Green color optional
Overview
LNK-NIC-10GE is a PCI Express x4 single port 10 Gigabit Ethernet network adapter based on the xxx chip solution. It is also compatible with PCle x8 and x16 channels. A high-performance, five rate NIC adapter that integrates PCle, MAC, and PHY to provide power and space-efficient connectivity to client systems. The PCle x4 universal interface gives this product great flexibility.
The integrated PHY can be routed through Cat 6a at speeds up to 10Gbps over a distance of 100 meters. It also supports 5Gbps network connections over traditional Cat 5e or Cat 6 cabling. The LNK-NIC-10GE is IEEE 802.3an & IEEE 802.3 bz compliant and enables 2.5GBASET, 5GBASE-T,10GBASE-T,1000BASE-T and 100BASE-TX transmission over 100m twisted pair cabling. MSI, MSI-X, LSO, RSS and IPv4/IPv6 checksum offload for high performance and low CPU utilization with up to 16 KB of massive data frame support.
Technical Indexes
|
Copper |
|
|
Copper Type |
10GBase-T:Cat 7 or higher up to 30m 5GBase-T:Cat 7 or higher up to 30m 2.5GBase-T:Cat 6A or higher up to 100m 1GBase-T:Cat 6 or higher up to 100m 100MBase-T:Cat 6 or higher up to 100m |
|
Baffle Height |
Half & Full height |
|
Power Consumption |
4.7W |
|
OS Support |
Windows 7/8/8.1/10 Windows Server 2008 R2/2012 R2/2016 R2/2019 R2 Linux Stable Kernel version 2.6.32/3.x/4.x or later Linux CentOS/RHEL 6.5 / 7.x or later Ubuntu 14.x/15.x/16.x or later VMware ESX/ESXi 4.x/5.x/6.x or later |
|
Bus Type |
PCIe v3.0 x4,compatible with x8, x16 |
|
Data rate per port |
10/100/1000M/2.5G/5G/10Gbps data rate |
|
Connector |
1*10G RJ45 |
|
Standards compliant |
IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair IEEE 802.3bz 2.5/5GBASE-T IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.1Q VLANs IEEE 802.3x Full Duplex and flow contro IEEE 802.3az - Energy Efficient Ethernet (EEE) |
|
iSCSI |
No |
|
WoL |
No |
|
Jumbo Frames |
Yes |
|
DPDK |
Yes |
|
PXE |
Yes |
|
FCoE |
No |
|
Operating Temperature |
0℃ to 55℃ (32℉ to 131℉) |
|
Storage Temperature |
-40℃ to 70℃ (-40℉ to 158℉) |
|
Storage Humidity |
Maximum: 90% non-condensing relative humidity at 35℃ |
|
Size |
125 x 125 x 20 mm |
|
Weight |
90g |
|
LED indication |
Power: Light on when power on; LNK/ACT: Light on when connected, light blinks when transfer data. |
Ordering Information
|
Model |
Description |
|
LNK-NIC-10GE |
PCIE x4 Single-port RJ45 10G Ethernet Network Adapter |
