उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: E-link
मॉडल संख्या: एलएनके-पीसीएम02
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1 टुकड़ा
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: कार्टन पैकेजिंग
प्रसव के समय: 3-12 कार्य दिवस
भुगतान शर्तें: एल/सी, टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल
आपूर्ति की क्षमता: 1000 पीसी/महीना
कार्य -तापमान: |
-35 ° C 75 ° C |
भंडारण तापमान: |
-40 ° C 45 ° C |
काम कर रहे आर्द्रता: |
0 % ~ 95 % (कोई संक्षेपण नहीं) |
कुल बिजली खपत: |
2.5w (इनपुट: DC12V 1A) |
कोड: |
पीसीएम कोड |
फाइबर बंदरगाह: |
एफसी/यूपीसी |
कार्य -तापमान: |
-35 ° C 75 ° C |
भंडारण तापमान: |
-40 ° C 45 ° C |
काम कर रहे आर्द्रता: |
0 % ~ 95 % (कोई संक्षेपण नहीं) |
कुल बिजली खपत: |
2.5w (इनपुट: DC12V 1A) |
कोड: |
पीसीएम कोड |
फाइबर बंदरगाह: |
एफसी/यूपीसी |
Advantages
► standard RJ11 telephone interface
► 2 channel support voice access, Support Caller ID and Fax
► Voice port supports O port and S port, O port connects switch and S port connects user’s phone
► Support FXO / FXS ordinary telephone
► Support point-to-point, cascaded and distributed network connections, and SNR will not decline
► Power link to fiber optic , data status indication LED can monitor system health
► Industrial design, modular design allows flexible and reliable equipment
Overview

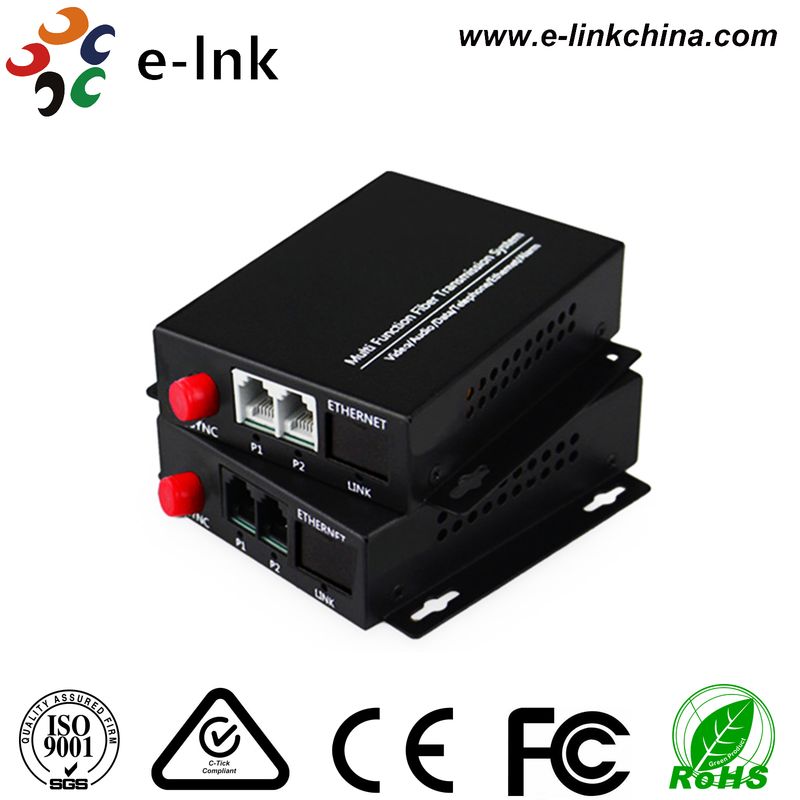

E-link 2 channel POTS (Plain Old Telephone System) phone lines over fiber converter / extender. This Voice over Fiber converter uses RJ-11C modular connectors for each copper pair connection. FXO type unit connects to a telephone line (PSTN) or PBX station line and has ability to detect ringing voltages and to act as a telephone. FXS type unit is the reciprocal unit and has ability to act as PSTN and connects to a telephone device.
Technical Indexes
|
Product Name |
2 channel telephone over fiber converter |
|
Product Model |
LNK-PCM02 Series |
|
Description |
FXO/FXS Ordinary telephone |
|
Telephone Ports |
2 telephone port RJ11 port |
|
Switch Terminal |
Ordinary telephone or PBX, PBX (PBX), |
|
FXS |
Ringing voltage: 75V, ringing frequency: 25HZ |
|
FXO |
Second line input impedance:600Ω (hook), |
|
Ring detection frequency |
17HZ-60HZ, |
|
Broadband Voice |
8KHZ |
|
Connection |
Point to point, telephone to switch |
|
Code |
PCM code |
|
Fiber Ports |
FC/UPC |
|
Ethernet Ports (optional) |
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation Interface Standard: Compatible with IEEE 402.3, IEEE 402.1Q (VLAN) MAC Address Capability: 4096 Connector: RJ45, support Auto-MDIX |
|
Transmission distance |
Single-mode single fiber 20KM |
|
Environmental Specifications |
Operating Temperature: -35°～ 75°C |
|
Storage Temperature: -40°～ 45°C |
|
|
Operating Humidity: 0%～95%, non-condensing |
|
|
Total power consumption |
2.5w(Input:DC12V 1A) |
|
Power supply |
External power supply, |
Ordering Information
|
Model |
Description |
|
LNK-PCM02 |
Analog Telephone to F/O Converter: 2-Ch Telephone lines (FXO & FXS), FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs |
|
LNK-PCM02-E |
Analog Telephone to F/O Converter: 2-Ch Telephone lines (FXO & FXS) + 1-Ch 100M Ethernet, FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs |
