उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: E-link
मॉडल संख्या: Lnk-ph32-4fe-4e1
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1 टुकड़ा
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: कार्टन पैकेजिंग
प्रसव के समय: 3-12 कार्य दिवस
भुगतान शर्तें: एल/सी, टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल
आपूर्ति की क्षमता: 1000 पीसी/महीना
कार्य -तापमान: |
-10 ° C ~ 50 ° C |
काम कर रहे आर्द्रता: |
5 % ~ 95 % (कोई संक्षेपण नहीं) |
भंडारण तापमान: |
-40 ° C ~ 80 ° C |
भंडारण आर्द्रता: |
5 % ~ 95 % (कोई संक्षेपण नहीं) |
दो/चार-पंक्ति प्रतिबाधा: |
600 ओम |
वापसी हानि: |
20 डीबी |
कार्य -तापमान: |
-10 ° C ~ 50 ° C |
काम कर रहे आर्द्रता: |
5 % ~ 95 % (कोई संक्षेपण नहीं) |
भंडारण तापमान: |
-40 ° C ~ 80 ° C |
भंडारण आर्द्रता: |
5 % ~ 95 % (कोई संक्षेपण नहीं) |
दो/चार-पंक्ति प्रतिबाधा: |
600 ओम |
वापसी हानि: |
20 डीबी |

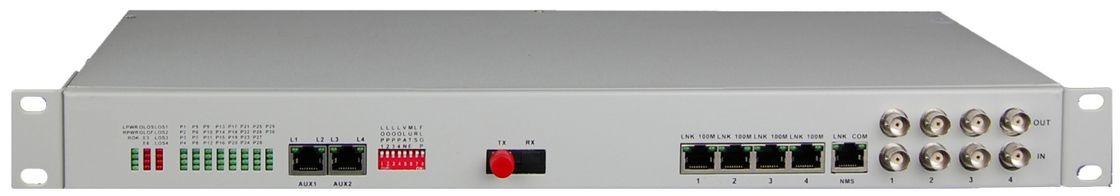

32Voice+4E1+4FE+4RS232 Fiber Multiplexer
Advantages
Ø Based on self -copyright IC
Ø E1 interface comply with G.703, adopts digital clock recovery and smooth phase-lock technology Voice port supports FXO and FXS port,
Ø Support FXO/FXS, EM2/4 audio, Magnet telephone Interface, FXO port docking with program-controlled switchboard, FXS port connected to the user's telephone;
Ø 1~32channel Voice access, supports caller ID feature and reverse polarity billing functions
Ø Support various sites mutual number allocation function
Ø Provide 4 expansion interface, you can extend 1~4Channel asynchronous data, such as RS232/RS485/RS422/Manchester code;1~4Channel voice, 1~8Channel switch or two/four line audio and so on
Ø Ethernet interface supports10M/100M, half/full duplex auto- adaptable, support VLAN
Ø 4Channel Ethernet interface is switch interface, support VLAN, can set to 4 channel logical isolation
Ø Ethernet interface can support AUTO-MDIX (crossed line and straightly connected line self-adaptable)
Ø Telephone interface with lightning protection, lightning reached IEC61000-4-5 Short circuit current wave 8 / 20μs, the peak output voltage 6KV open standards
Ø The transmission distance is up to 2-120Km without interruption
Ø AC 220V, DC-48V, DC24V can be optional
Overview
This device provides 16Channel telephone, 1-8Channel E1 interface, 4Channel10/100M Ethernet interface (Wire Speed 100M) and 4 expansion interface. 4Channel Ethernet interface is switch interface, can support VLAN. 4 expansion interfaces can be used as the transmission channel of RS232/RS485/RS422 asynchronous data, voice signal, 2/4 line E&M audio signal, switch signal, Ethernet signal (Bandwidth 2M). It is very flexible.
Technical Indexes
|
Model |
LNK-PH32-4FE-4E1 |
|
Functional Description |
32 * telephone,4E1,4*100 Mbps Ethernet,Console or SNMP,Support 6U rackmount,Two Fiber interface,4*RS232/422/485 |
|
Power |
Power supply: AC180V ~ 260V；DC –48V；DC +24V Power consumption: ≤10W |
|
Dimension |
Product Size: 485X138X45mm(WXDXH) 19 1U |
|
Weight |
2.5KG |
Application
