उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: E-link
मॉडल संख्या: LNK-CSFP-1GXX-120
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1 टुकड़ा
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: कार्टन पैकेजिंग
प्रसव के समय: 3-12 कार्य दिवस
भुगतान शर्तें: एल/सी, टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल
आपूर्ति की क्षमता: 1000 पीसी/महीना
भण्डारण तापमान भण्डारण तापमान: |
-40 ~ 85 डिग्री सेल्सियस |
वोल्टेज आपूर्ति: |
-0.5 ~ 3.6V |
सापेक्षिक आर्द्रता: |
0~90% |
केस ऑपरेटिंग तापमान: |
0 ~ 70 डिग्री सेल्सियस |
बिजली आपूर्ति करें: |
300ma |
ऑप्टिकल इनपुट तरंगदैर्ध्य: |
1260 ~ 1620 एनएम |
भण्डारण तापमान भण्डारण तापमान: |
-40 ~ 85 डिग्री सेल्सियस |
वोल्टेज आपूर्ति: |
-0.5 ~ 3.6V |
सापेक्षिक आर्द्रता: |
0~90% |
केस ऑपरेटिंग तापमान: |
0 ~ 70 डिग्री सेल्सियस |
बिजली आपूर्ति करें: |
300ma |
ऑप्टिकल इनपुट तरंगदैर्ध्य: |
1260 ~ 1620 एनएम |

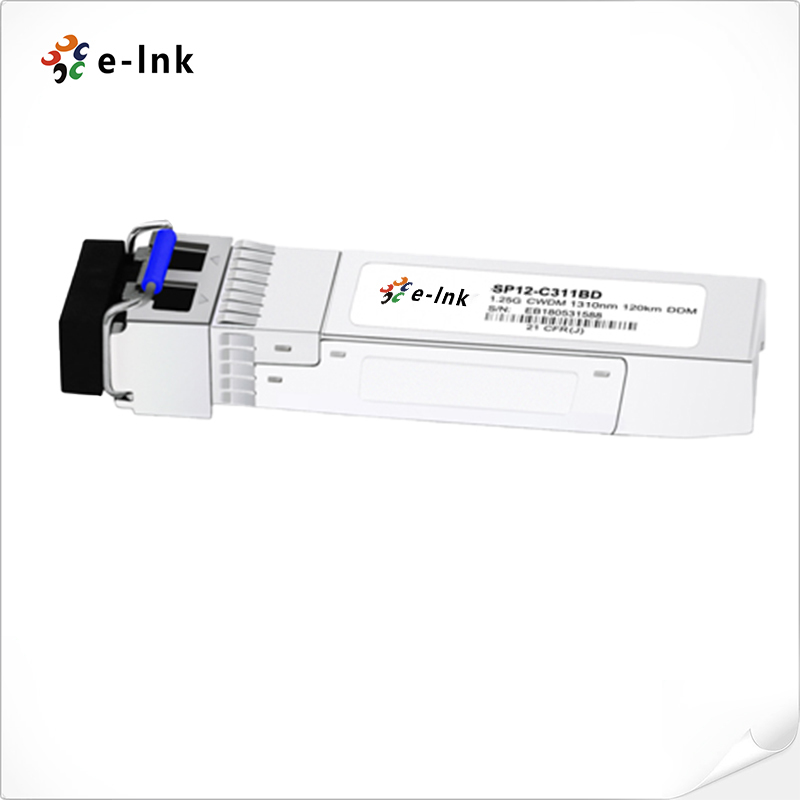

1.25Gb/s 120km CWDM SFP Transceiver
Advantages
Ø Data-rate of 1.25Gbps operation
Ø 18-Wavelength CWDM DFB LD Transmitter from
Ø 1270nm to 1610nm, with Step 20nm
Ø Compliant with SFP MSA and SFF-8472
Ø Compatible with SONET OC-24-LR-1
Ø Compatible with RoHS
Ø +3.3V single power supply
Ø Hot-Pluggable SFP Footprint Duplex LC
Ø Operating case temperature Standard: 0°C to +70°C Extended: -20°C to +85°C
Industrial: -40°C to +85°C
Overview
The LNK-CSFP-1Gxx-120 series single mode transceiver is small form factor pluggable module for duplex optical data communications such as Gigabit Ethernet 1000BASE-ZX and Fiber Channel 1x SM-LC-L FC-PI. It is with the SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of CWDM wavelength. There are eighteen center wavelengths available from 1270nm to 1610nm, with each step 20nm.
The transmitter section uses a multiple quantum well CWDM DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. The LNK-CSFP-1Gxx-120 series are designed to be compliant with SFF-8472.
Technical Indexes
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
|
Transmitter Section: |
||||||
|
Center Wavelength |
λc |
λ-6 |
λ |
λ+7.5 |
nm |
|
|
Spectral Width(-20dB) |
△λ |
|
|
1 |
nm |
|
|
Side Mode Suppression Ratio |
SMSR |
30 |
|
|
dB |
|
|
Optical Output Power |
Pout |
0 |
|
+5 |
dBm |
1 |
|
Optical Rise/Fall Time |
tr / tf |
|
|
260 |
ps |
2 |
|
Extinction Ratio |
ER |
8.2 |
|
|
dB |
|
|
Eye Mask for Optical Output |
Compliant with IEEE802.3z(class 1 laser safety) |
|
||||
|
Receiver Section: |
|
|||||
|
Optical Input Wavelength |
λc |
1260 |
|
1620 |
nm |
|
|
Receiver Overload |
Pol |
-8 |
|
|
dBm |
3 |
|
RX Sensitivity |
Sen |
|
|
-32 |
dBm |
3 |
|
RX_LOS Assert |
LOS A |
-40 |
|
|
dBm |
|
|
RX_LOS De-assert |
LOS D |
|
|
-32 |
dBm |
|
|
RX_LOS Hysteresis |
LOS H |
0.5 |
|
|
dB |
|
|
General Specifications: |
||||||
|
Data Rate |
BR |
|
1.063/1.25 |
|
Gb/s |
|
|
Bit Error Rate |
BER |
|
|
10-12 |
|
|
|
Max. Supported Link Length on 9/125μm SMF@1.25Gb/s |
LMAX |
|
120 |
|
km |
|
|
Total System Budget |
LB |
24 |
|
|
dB |
|
Application
Ø Gigabit Ethernet
Ø Fiber Channel Switch Infrastructure
Ø Router/Server interface
Ø Other optical transmission systems
