उत्पाद का विवरण
Place of Origin: China
ब्रांड नाम: E-link
प्रमाणन: ISO9001, CE, FCC, RoHS
Model Number: Handheld Optical Detector
दस्तावेज: LNK-SDH155TM Series SDH Mul....0.pdf
भुगतान और शिपिंग की शर्तें
Minimum Order Quantity: 1pcs
मूल्य: बातचीत योग्य
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
Wave length: |
Tx 1310nm, Rx 1310nm |
Duplex mode: |
full duplex, half duplex |
Data rate: |
155520kbit/s |
Line Impedanc: |
75ohm unbalanced or 120ohm balanced optional |
Wave length: |
Tx 1310nm, Rx 1310nm |
Duplex mode: |
full duplex, half duplex |
Data rate: |
155520kbit/s |
Line Impedanc: |
75ohm unbalanced or 120ohm balanced optional |

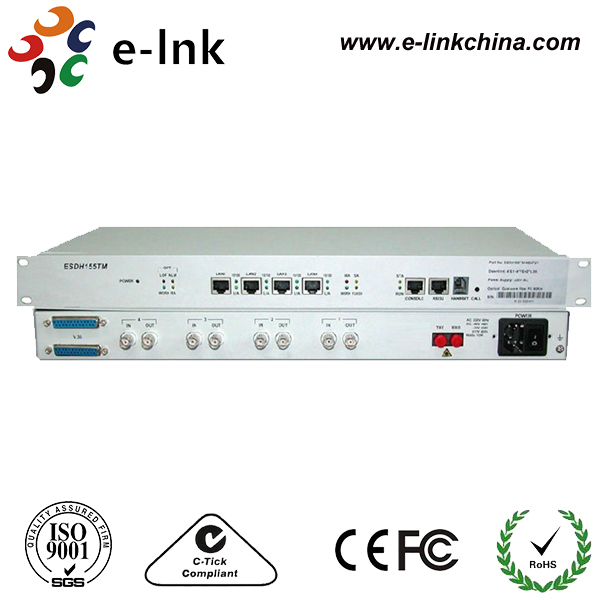

LNK-SDH155TM SERIES Terminal Multiplexer
Product Advantages
Overview
LNK-SDH155TM series STM-1 terminal multiplexer delivers bonded E1 lines, Ethernet services and V.35 links over legacy SDH networks. Installed at the customer site or directly on STM-1 access ring. LNK-SDH155TM provides Console interface for management. The VIEW network management system supports remote configuration and monitoring.
Technical Indexes
|
Parameter |
Specifications |
|
STM1 Interface |
Number of Ports:1 Wave length: Tx 1310nm, Rx 1310nm Connector: FC/SC Line code: 1B1H Data rate: 155520kbit/s |
|
10/100BASE-TX Ethernet Interface |
Number of Ports:4 Interface: 10/100BASE-TX Data rate: 10/100Mbps auto-negotiation or force mode Duplex mode: full duplex, half duplex Interface line sequence: MDI/MDI-X auto-sense Connector: RJ45 |
|
V.35 Interface |
Number of Ports:2 Interface rate: Framed N×64Kbit/s (N=1~31) Unframed 2048Kbit/s Work mode: DCE or DTE selectable Connector: DB25 female |
|
E1 Interface |
Number of Ports: 4/8/16 Line Rate: 2048kbps ± 50ppm Line Code: HDB3 Line Impedance: 75ohm unbalanced or 120ohm balanced optional |
|
Management Interface |
Number of Ports:1 Console interface: RS232 serial port Baud rate: 57600bps Connector: RJ45 |
