उत्पाद का विवरण
Place of Origin: China
ब्रांड नाम: E-link
प्रमाणन: CE，FCC
Model Number: LNK-DAN-D5
दस्तावेज: E-link H.265 HDMI Video Enc....0.pdf
भुगतान और शिपिंग की शर्तें
Minimum Order Quantity: 1pcs
मूल्य: बातचीत योग्य
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
Dimension (W*H*D): |
102mm x 70mm x 44mm |
Weight: |
0.4KG |
Operating temperature: |
-20℃+ 60℃ |
CasingCasingCasingCasingCasing: |
Aluminum Case |
Power Consumption: |
10W |
Power supply: |
5V~2.4A |
Dimension (W*H*D): |
102mm x 70mm x 44mm |
Weight: |
0.4KG |
Operating temperature: |
-20℃+ 60℃ |
CasingCasingCasingCasingCasing: |
Aluminum Case |
Power Consumption: |
10W |
Power supply: |
5V~2.4A |
Product Advantages
· Support 3G/4G/WIFI/cable network optional
· The shoe base is fixed to the camera
· Support 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i solutions (customized)
· Support HDMI input,H.265 latest architecture
· Support more units in one computer to work.
· Supports WINDOWS and LINUX etc
· Support multiple devices display on a computer at the same time
· Support RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS unicast and multicast protocol (RTMP support adding users and changing passwords)
Overview

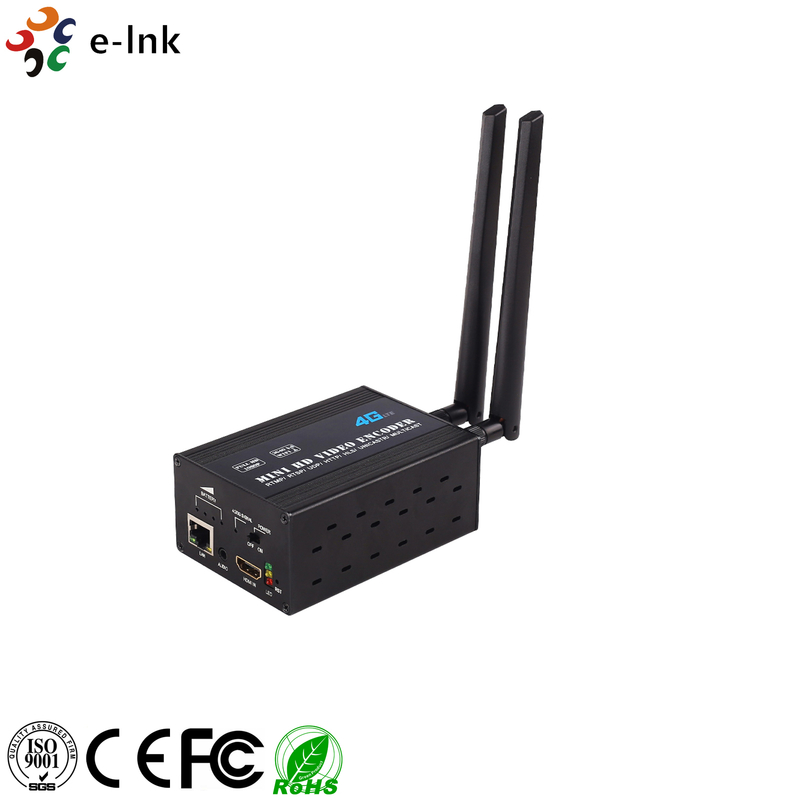

LNK-H8 series 3G & 4 G& WIF I& Lithium battery HDMI Encoder, supports push-flow status lamp, supports 1-channel HDMI input, 1 channel 3.5MM independent audio input, dual streaming H.265/ H.264 encoded output, MP3, AAC output. Bitrate and display definition could be freely adjusted according to the need.
Technical Indexes
|
Model |
LNK-H8 2/3/4G++WIFI +Lithium battery HDMI encoder
|
|
|
Audio |
Input resolution |
1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i etc |
|
Coding standard |
H.265 / H.264 |
|
|
Coding level |
H.265 main profile H.264 BASELINE PROFILE H.264 MAIN PROFILE H.264 HIGH PROFILE |
|
|
Encoded size |
640*360~1920*1080(can be customized) |
|
|
Video bit rate |
CBR/VBR: 16KBIT/S~12MBIT/S |
|
|
Video frame rate |
30/60 |
|
|
OSD |
Text& image |
|
|
IP Output |
Audio coding |
AAC/MP3/G711 |
|
Audio bit rate |
64Kb/s~384Kb/s |
|
|
Sampling rate |
32000, 44100, 48000 etc |
|
|
System |
1 RJ45 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol |
|
|
Network protocol |
Supports HLS, HTTP, RTSP, RTMP, UDP, HLS Unicast, multicast |
|
|
Configuration management |
Supports IE configuration, remote upgrade |
|
|
|
Power supply |
5V~2.4A |
|
power consumption |
10W |
|
|
Size |
102mm x 70mm x 44mm |
|
|
Operating temperature |
-20℃+ 60℃ |
|
|
Working humidity |
<90%, Non-condensing |
|
|
Weight |
0.4KG |
|
|
|
LTE |
3G/4G(selectable) |
|
|
Battery |
10000MAH |
|
Our company reserves the right to adjust the product parameters, if you have any questions please contact us to check |
||
