उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: E-link
प्रमाणन: CE, FCC
मॉडल संख्या: LNK-POE200W
दस्तावेज: E-link LNK-PSW Series PoE I....0.pdf
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1 टुकड़ा
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: औद्योगिक पीओई स्विच मानक कार्टन पैकेजिंग
प्रसव के समय: 7-10 कार्य दिवस
भुगतान शर्तें: एल/सी, टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल
आपूर्ति की क्षमता: 100000pcs/महीना
परिचालन तापमान:: |
0 से +40 ° C (32 ° F से 104 ° F) |
आकार (LxWxH):: |
84 × 47 × 31 मिमी |
मामला: |
धातु का मामला |
वज़न: |
120 ग्रा |
नमी: |
मैक्स। 95% आरएच (गैर संघनक) |
बिजली उत्पादन: |
24W/48W वैकल्पिक |
परिचालन तापमान:: |
0 से +40 ° C (32 ° F से 104 ° F) |
आकार (LxWxH):: |
84 × 47 × 31 मिमी |
मामला: |
धातु का मामला |
वज़न: |
120 ग्रा |
नमी: |
मैक्स। 95% आरएच (गैर संघनक) |
बिजली उत्पादन: |
24W/48W वैकल्पिक |
Product Advantages
► Compact wall mount design
► No additional power cables required
► Built in protection circuits
► Supports 10/100M or 10/100/1000M LAN environment
► Plug & Play
► No configuration required
► Reduced Installation cost
► Safe and Reliable Power to WLAN Access Points
► Automatic Detection and Protection of Non–standard Ethernet Terminals
Overview

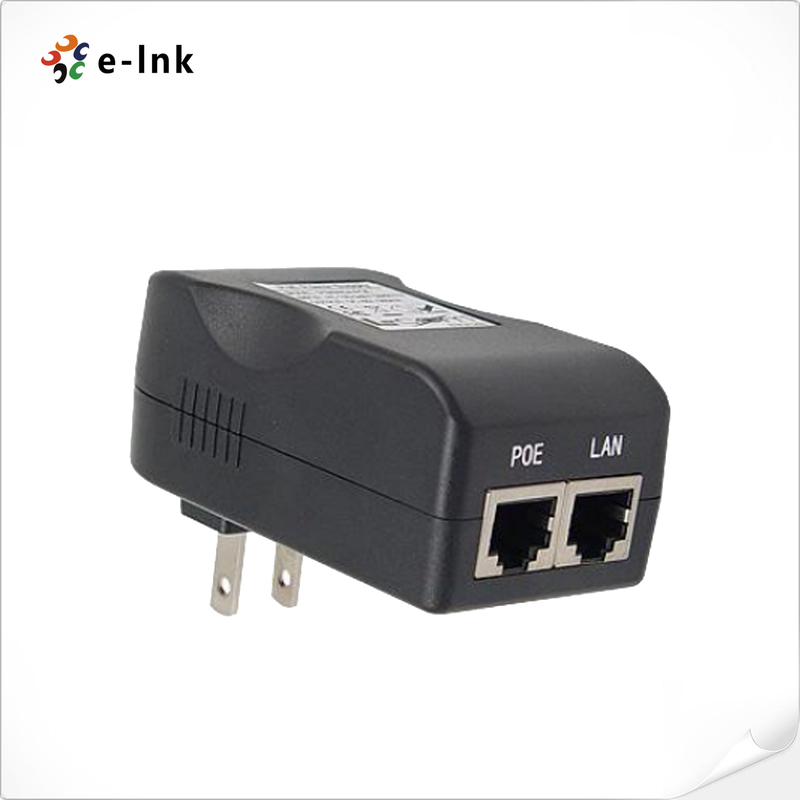

E-link wall mount PoE injector is completely self-contained, a separate power supply and injector is not required. It can be plugged directly into a wall electrical outlet, eliminating the need for additional power cables. The compact size makes it ideal for crowded equipment enclosures.
Technical Indexes
Parameter |
Specifications |
Data Rate |
10/100Mbps 10/100/1000Mbps |
Connectors |
2xRJ45 Jacks |
Input Power |
90-240V AC ,50-60Hz |
Output Voltage |
12V/24V/48V/52V/56VDC optional |
Output Current |
0.5A/0.8A/0.9A/1.0A/2.0A Optional |
Output Power |
24W/48W optional |
Wiring |
|
• Power over spare pairs 4/5(+) and 7/8(-) |
|
LED Display |
YES |
Over Load Protection |
115%-150% of Rated Power |
Operating Temperature |
0 to +40°C (32°F to 104°F) |
Operating Humidity |
Max. 95% RH(non-condensing) |
Dimension (LxWxH) |
84×47×31mm |
Weight |
120g |
Ordering Information
Model |
Decription |
LNK-POE200W |
Wall Mount PoE Injector, 10/100Mbps, IEEE 802.3af 15.4W |
LNK-POE200WT |
Wall Mount PoE Injector, 10/100Mbps, IEEE 802.3at 30W |
LNK-POE300W |
Wall Mount PoE Injector, 10/100/1000Mbps, IEEE 802.3af 15.4W |
LNK-POE300WT |
Wall Mount PoE Injector, 10/100/1000Mbps, IEEE 802.3at 30W |
