उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: E-link
प्रमाणन: CE, RoHS, FCC, ISO9001
मॉडल संख्या: एलएनके-पीओई 600
दस्तावेज: E-link LNK-POE600 101001000....0.pdf
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1 टुकड़ा
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: औद्योगिक पीओई स्विच मानक कार्टन पैकेजिंग
प्रसव के समय: 7-10 कार्य दिवस
भुगतान शर्तें: एल/सी, टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल
आपूर्ति की क्षमता: 100000pcs/महीना
झलार: |
प्लास्टिक का मामला |
परिचालन तापमान:: |
0 ° C 55 ° C |
वज़न: |
0.25 किग्रा |
काम कर रहे आर्द्रता: |
10%~90%, गैर-संघनक |
आयाम (W × D × H):: |
145 x 58 x 39 मिमी |
बढ़ते विकल्प:: |
डेस्कटॉप |
झलार: |
प्लास्टिक का मामला |
परिचालन तापमान:: |
0 ° C 55 ° C |
वज़न: |
0.25 किग्रा |
काम कर रहे आर्द्रता: |
10%~90%, गैर-संघनक |
आयाम (W × D × H):: |
145 x 58 x 39 मिमी |
बढ़ते विकल्प:: |
डेस्कटॉप |
Product Advantages
► Up to 60W of PoE Power
► Compliant with IEEE802.3af/at Standard
► Support 10/100/1000Base-T
► Compliant with Limited Power Source (LPS)
► High Efficiency > 85%
► Low No Load Power Consumption < 0.5W
► Provide 2 LED indicators include Power LED(Green) and PoE LED(Orange)
► Over-Voltage/Load/Temperature & Short Circuit protections
► Plug & Play, no configuration required
► Safe and Reliable Power to WLAN Access Points
► Automatic Detection and Protection of Non-standard Ethernet Terminals
► Injects 56V DC through a CAT 5 cable, use all 4 pairs into remote devices such as wireless AP, IP phone, web camera and other functions
Overview

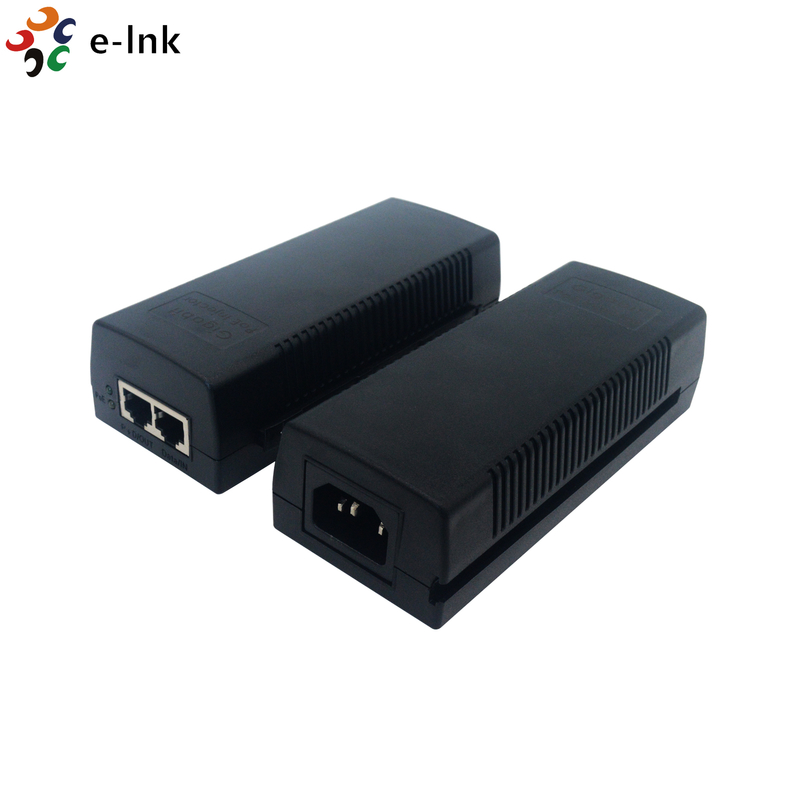

LNK-POE600 60W – 56V Gigabit PoE Injector is a long distance driving, fast network performing, strong PoE Output IEEE 802.3at and 802.3af certified midspan. It is a single port indoor PoE injector that can provide up to 60W PoE Power.
The midspans are ideal to power 802.11 access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high-power Ethernet end terminals with 60W of power. The solutions support IEEE 802.3af/at powered devices and are also backward compatible and safe to use with any IEEE 802.3af/at terminal. With plug and-play installation, they are easy and cost effective to implement leveraging existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
Technical Indexes
|
Standards: |
IEEE 802.3 10Base-T Ethernet |
|
IEEE 802.3u 100Base-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
10/100/1000Base-T: Cat5 or above |
|
Maximum Distance: |
Ultra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) 802.3af / at PoE (15W / 30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) |
|
Connector: |
LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port AC Connector: 1 x AC Input power socket, IEC-60320 C13 |
|
Environmental |
|
|
Operating Temperature: |
-10°C to 50°C (14°F to 122°F) |
|
Storage Temperature: |
-20°C to 70°C (-4°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Voltage Range: |
100-240V AC @50/60Hz, 1.5A max. |
|
Output Voltage: |
DC 50-57V, 1.2A |
|
Power Consumption: |
60 watts max. |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE 802.3af |
|
IEEE 802.3at |
|
|
Port: |
RJ45 |
|
Power Pin Assignment |
Pin 1,2 / 4,5 (+), Pin 3,6 / 7,8 (-) |
|
PoE Power Output |
DC 50V-57V/30-watt PoE via 2-pairs |
|
LED Indicators |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (W×D×H): |
145 x 58 x 39mm |
|
Weight: |
0.25Kg |
|
Casing: |
Plastic Case |
|
Mounting Options: |
Desktop |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500W |
|
|
ESD: 4KV/8KV |
|
Ordering Information
|
Model |
Description |
|
LNK-POE600 |
60-watt Ultra Power over Ethernet Injector (10/100/1000Mbps, 4-Pair) |
