Mini SFP Media Converter with 10/100/1000BASE-T to 100/1000BASE-X

Name: Mini SFP Media Converter with 10/100/1000BASE-T to 100/1000BASE-X
Brand: E-link China Technology Co.,LTD
SKU: LNK-M3011-SFP
Price: 12.00 USD
Availability: InStock

उत्पाद का विवरण

उत्पत्ति के प्लेस: चीन

ब्रांड नाम: E-link

प्रमाणन: ISO9001, CE, ROHS, FCC

मॉडल संख्या: LNK-M3011-SFP

दस्तावेज: 1E-link Communication & Net...og.pdf

भुगतान और शिपिंग की शर्तें

न्यूनतम आदेश मात्रा: 1 टुकड़ा

मूल्य: US$10-US$14

पैकेजिंग विवरण: फाइबर मीडिया कनवर्टर मानक कार्टन पैकेजिंग

प्रसव के समय: 3-5 कार्य दिवस

भुगतान शर्तें: टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल

आपूर्ति की क्षमता: 1000/महीना

सबसे अच्छी कीमत पाएं

अब संपर्क करें

विनिर्देश

विवरण

विनिर्देश

प्रमुखता देना:
                                                                                                                                                                                                                                                                                                                                                                                                      Mini SFP Media Converter, 10/100/1000BASE-T to 1000BASE-X Media Converter


फाइबर पोर्ट:	एसएफपी - 100/1000एम अनुकूली	रूपांतरण का अर्थ है:	मीडिया रूपांतरण
माउंटेड:	100,000 घंटे	बिजली की आपूर्ति:	डीसी 5~15वी (टाइप-सी)
तापमान बनाए रखना:	-40 ~ 70ºC	आयाम (डब्ल्यू एक्स डी एक्स एच):	78 x 27 x 18 मिमी

फाइबर पोर्ट:	एसएफपी - 100/1000एम अनुकूली
रूपांतरण का अर्थ है:	मीडिया रूपांतरण
माउंटेड:	100,000 घंटे
बिजली की आपूर्ति:	डीसी 5~15वी (टाइप-सी)
तापमान बनाए रखना:	-40 ~ 70ºC
आयाम (डब्ल्यू एक्स डी एक्स एच):	78 x 27 x 18 मिमी

विवरण

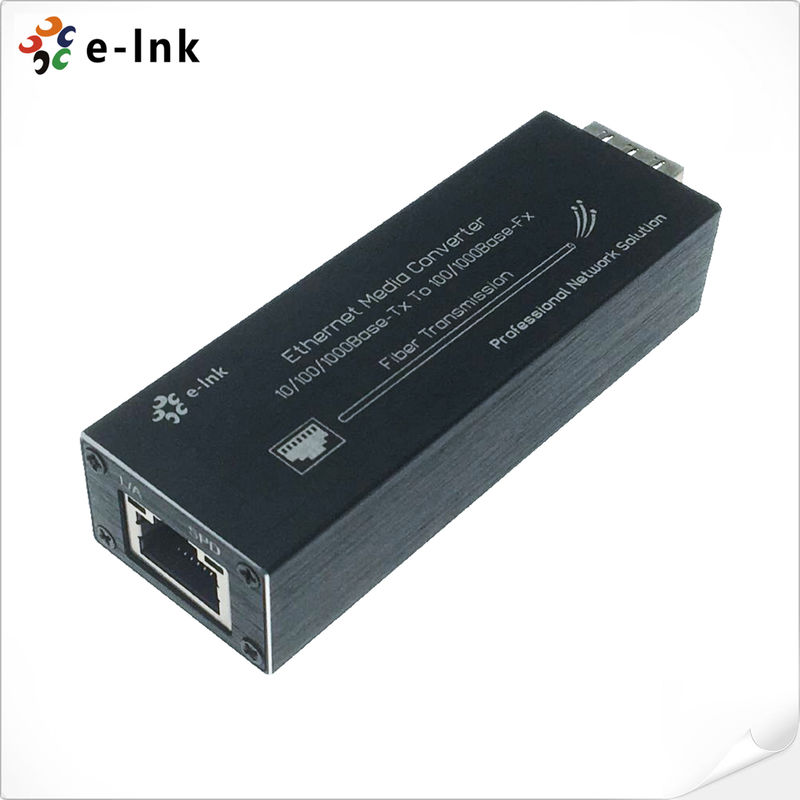

Mini SFP Media Converter with 10/100/1000BASE-T to 100/1000BASE-X

Model : LNK-M3011-SFP

Overview

100/1000BASE-X (LNK-M3011-SFP) is a high-performance network conversion device that

utilizes advanced switching technology to achieve seamless media conversion. As a Mini SFP

Media Converter with 10/100/1000BASE-T to 100/1000BASE-X, it strictly adheres to IEEE802.3,

IEEE802.3u, IEEE802.3z, and IEEE802.3ab standards, ensuring stable and reliable operation

across various network environments.

This Mini SFP Media Converter with 10/100/1000BASE-T to 100/1000BASE-X supports two

key types of media network connections: 10Base-T/100Base-TX/1000Base-T and 100/1000

Base-X. It efficiently interconverts electrical signals from 10Base-T/100Base-TX/1000Base-T

twisted pairs with optical signals from 100/1000Base-SX/LX, breaking through the distance

constraints of traditional copper cable transmission. Notably, it extends the network transmission

distance from 100 meters via copper cable to a maximum of 120km using fiber optic cables,

significantly expanding network coverage.

What distinguishes this Mini SFP Media Converter with 10/100/1000BASE-T to 100/1000

BASE-X is its versatile transmission modes, supporting multi-mode dual fiber, single mode

dual fiber, and single mode single fiber transmission. Additionally, it features an intelligent

energy-saving design: when plugged into a computer’s USB port, it shuts down automatically

when the computer is turned off, reducing unnecessary power consumption. Its micro-mini

size makes it an excellent solution for fiber-to-the-laptop applications, where Gigabit fiber

connectivity is needed but local power is unavailable, further enhancing its practicality in

diverse scenarios.

Features

► Smallest media converters available; tuck the unobtrusively behind a PC

► 10/100 /1000Base-T to 100/1000Base-X SFP

► SFP port support 100Base-FX or 1000Base-X dual mode (auto detection)

► USB-powered for portability, or use 5~15VDC wide range power input

► Ultra compact and weigh less than 2 ounces

► Support 9k jumbo frame

► Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber

► Aluminum Case: Conducive to heat dissipation; Lower weight and lower freight cost

► Including a Power Supply

Technical Indexes

Parameter	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Fiber Port	SFP - 100/1000M adaptive
Wavelength	850nm/1310nm/1550nm (Based on SFP Module used)
Transmission distance	Fiber Cable: Depends on SFP Module Category-5 twisted pairs: 100m
Port	One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One Optical port: SFP
Conversion means	Media conversion
LFP	Not Support
BER	<10^-9
MTBF	100,000 hours
LED indicator	PWR (Power supply) TX (LINK100/1000, TP cable rate 100/1000M) FX/ACT (Optical link action /TP cable packet forwarding action)
Power supply	DC 5~15V (Type-C)
Power consumption	<3W
Operating temperature	0~45ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
Weight	46g
Dimensions (W x D x H)	78 x 27 x 18 mm
