उत्पाद का विवरण
Place of Origin: China
ब्रांड नाम: E-link
प्रमाणन: ISO9001, CE, FCC, RoHS
मॉडल संख्या: एलएनके-INJ302
भुगतान और शिपिंग की शर्तें
Minimum Order Quantity: 1pcs
मूल्य: Negotiated
पैकेजिंग विवरण: मानक निर्यात पैकेज
प्रसव के समय: 5-12working दिन
भुगतान शर्तें: टी/टी, पेपैल
Supply Ability: 1000pcs/mouth
इनपुट शक्ति: |
12~48वी डीसी रिडंडेंट पावर |
आयाम (WXDXH):: |
95 x 70 x 30 मिमी |
वज़न:: |
0.26 किग्रा |
झलार: |
एल्यूमीनियम केस |
बढ़ते विकल्प:: |
दीन-रेल / दीवार-माउंट |
परिचालन तापमान:: |
-40 ° C से 80 ° C (-40 ° F से 176 ° F) |
इनपुट शक्ति: |
12~48वी डीसी रिडंडेंट पावर |
आयाम (WXDXH):: |
95 x 70 x 30 मिमी |
वज़न:: |
0.26 किग्रा |
झलार: |
एल्यूमीनियम केस |
बढ़ते विकल्प:: |
दीन-रेल / दीवार-माउंट |
परिचालन तापमान:: |
-40 ° C से 80 ° C (-40 ° F से 176 ° F) |
Advantage
► 12~48VDC Power Input
► 2 RJ45 Ethernet Data Input Port + 2 RJ45 Power Over Ethernet Output Port (Data + Power)
► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment
► Max 60W PoE at one port, total POE power less than 60W
► Support 10/100/1000Base-TX
► Support DIN-Rail & Wall-mount installation.
► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Overview

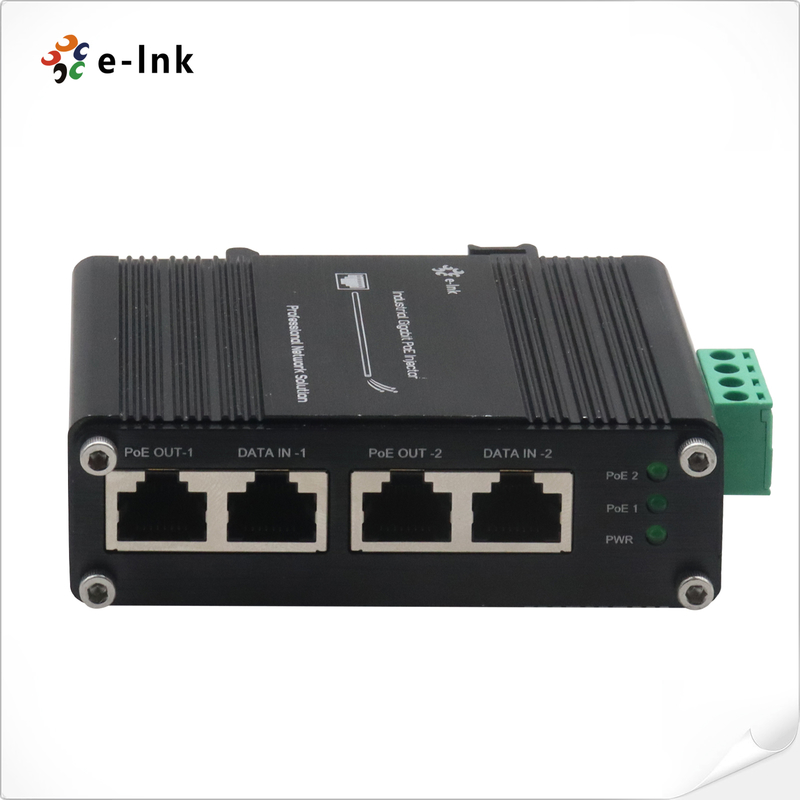

The LNK-INJ302 product is a Hardened 2 ports Gigabit High Power PoE Injector allows you to connect the
IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance
of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T
and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at. LNK-INJ302
provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.
Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE802.3af Power over Ethernet |
|
|
IEEE802.3at Power over Ethernet |
|
Processing Type: |
Forward |
|
|
Half-duplex, Full-duplex |
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
10/100/1000Base-T: Cat5 or above |
|
Maximum Distance: |
Cat5 UTP up to 100m |
|
Connector: |
4x RJ45 |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC (Terminal Block) |
|
Power Consumption: |
70W Max. |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE802.3af/at |
|
Port: |
RJ45 |
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
Max. Power per Port: |
60W Max (Alternative B Mode) |
Application
Ordering Information
|
Model |
Description |
|
LNK-INJ302 |
12~48VDC Power Input Industrial 2 ports Gigabit PoE+ Injector |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |
