उत्पाद का विवरण
Place of Origin: China
ब्रांड नाम: E-link
प्रमाणन: ISO9001, CE, FCC, RoHS
Model Number: LNK-INJ301-30-M12
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1 टुकड़ा
मूल्य: Negotiated
Packaging Details: standard export package
प्रसव के समय: 5-12working दिन
भुगतान शर्तें: टी/टी, पेपैल
Supply Ability: 1000pcs/mouth
परिचालन तापमान:: |
-40 ° C से 80 ° C (-40 ° F से 176 ° F) |
भंडारण तापमान:: |
-40 ° C से 85 ° C (-40 ° F से 185 ° F) |
आयाम (WXDXH):: |
95 x 70 x 30 मिमी |
वज़न:: |
0.25 किग्रा |
बढ़ते विकल्प:: |
दीन-रेल / दीवार-माउंट |
आवरण:: |
एल्यूमीनियम केस |
परिचालन तापमान:: |
-40 ° C से 80 ° C (-40 ° F से 176 ° F) |
भंडारण तापमान:: |
-40 ° C से 85 ° C (-40 ° F से 185 ° F) |
आयाम (WXDXH):: |
95 x 70 x 30 मिमी |
वज़न:: |
0.25 किग्रा |
बढ़ते विकल्प:: |
दीन-रेल / दीवार-माउंट |
आवरण:: |
एल्यूमीनियम केस |
Advantage
► 12~48V DC Power Input
► Fully compliant with IEEE802.3af/at
► Support 10/100/1000Base-TX for power and data output
► Support DIN-Rail & Wall-mount installation
► Aluminum Case
► Extensive LED indicators for PoE diagnostics
Overview

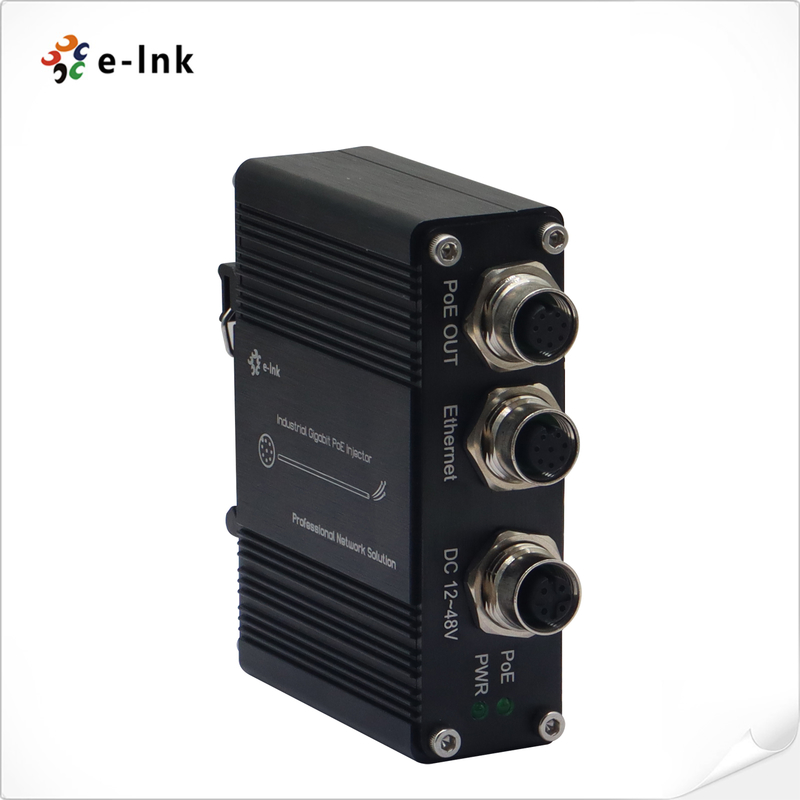

E-link EN50155 compliant PoE Injectors are designed for industrial applications, such as rolling stock, vehicle,
and railway applications. The PoE Injector is an advanced IEEE802.3at compliant device with Intelligent Detection
that provides 1-port 10/100/1000 Base-T(X) PoE output which is compliant with EN50155. It is specifically designed
for the toughest industrial environments. The EN50155 PoE Injector uses M12 connectors to ensure tight, robust
connections, and guarantee reliable operation during environmental disturbances, such as vibration and shock.
The device does not turn on power until it detects a valid PoE signature from the PoE devices attached downstream
in the network. This provides protection against damage to non-PoE compliant devices which may be connected to
the Ethernet cable.
LNK-INJ301-30-M12 provides an integrated power solution with a wide range voltage of 12~48V DC for high
availability applications.
Technical Indexes
|
Standards: |
IEEE802.3af Power over Ethernet |
|
IEEE802.3at Power over Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
10/100/1000Base-T |
|
Connector: |
2x M12 connector (8-pin female M12 A-coding) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48V DC on 4-pin female M12 A-Coding |
|
Power Consumption: |
36W Max. |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE802.3af/at |
|
Port: |
M12 connector (8-pin female M12 A-coding) |
|
Max. Power per Port: |
30W Max |
|
LED Indicators: |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A, EN50155 |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500V |
|
|
ESD: 4KV/8KV |
|
Application
Ordering Information
|
Model |
Description |
|
LNK-INJ301-30-M12 |
EN50155 Industrial 1-port 10/100/1000M M12 PoE Injector 12~48V DC Power Input |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |
