उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: E-link
प्रमाणन: CE, RoHS, FCC
मॉडल संख्या: एलएनके-आईएनजे601-30
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1pc
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: पीओई इंजेक्टर एडाप्टर मानक निर्यात पैकेज
प्रसव के समय: 5-12 कार्य दिवस
भुगतान शर्तें: एल/सी, टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल
आपूर्ति की क्षमता: 1000 पीसीएस/माह
मुख्य शब्द: |
PoE इंजेक्टर एडाप्टर |
इनपुट शक्ति: |
12~48VDC (टर्मिनल ब्लॉक) |
आयाम (WxDxH): |
95 x 70 x 30 मिमी |
वजन: |
0.25 किग्रा |
बढ़ते विकल्प: |
डीआईएन-रेल / वॉल-माउंट |
आवरण: |
एल्यूमीनियम का मामला |
मुख्य शब्द: |
PoE इंजेक्टर एडाप्टर |
इनपुट शक्ति: |
12~48VDC (टर्मिनल ब्लॉक) |
आयाम (WxDxH): |
95 x 70 x 30 मिमी |
वजन: |
0.25 किग्रा |
बढ़ते विकल्प: |
डीआईएन-रेल / वॉल-माउंट |
आवरण: |
एल्यूमीनियम का मामला |

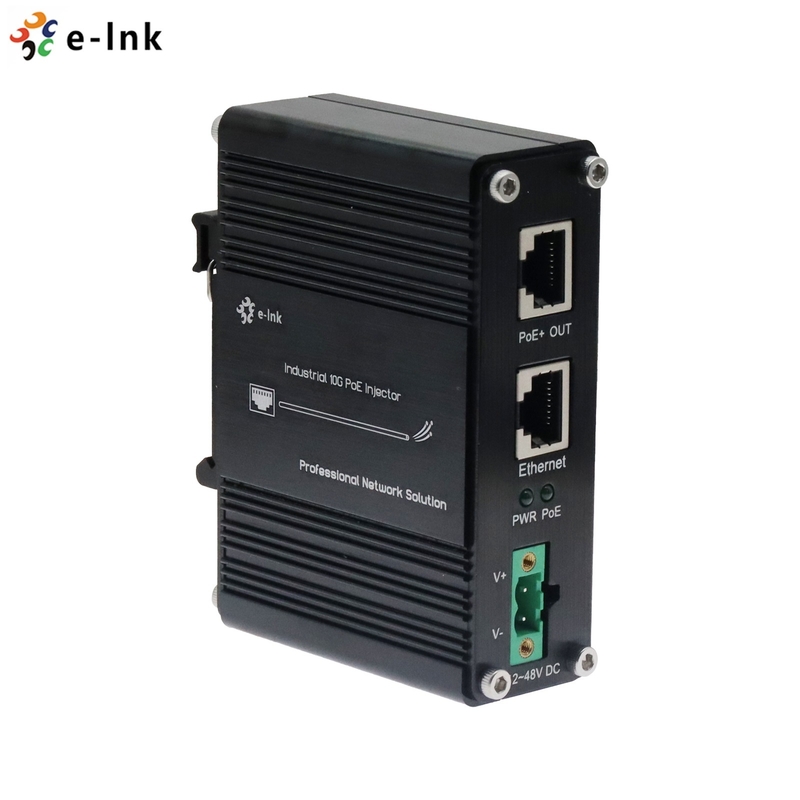

12~48V DC Power Input Industrial 10G PoE+ Injector
PoE Injector Adapter Advantages
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)
► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment
► Support 10/100/1000/2.5G/5G/10G Base-TX
► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 14,880,000pps (10Gbps) |
| Cabling: | 10/100/1000/2.5G/5G/10G Base-T: Cat7 or above |
| Maximum Distance: | Cat7 UTP up to 30m |
| Connector: | 2x RJ45 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | 36W Max. |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| Max. Power per Port: | 30W Max per port (Alternative B Mode) |
Overview
The LNK-INJ601-30 product is a Hardened 10G PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as
camera and access point with a non PoE LAN switch within the distance of 30m. Both the Ethernet port (to switch) and the
PoE Out port (to PoE device) support 10/100/1000/2.5G/5G/10G Base-T and are compliant with IEEE 802.3ab. The PoE Out
port is also compliant with IEEE 802.3 at.
Application
Ordering Information
| Model | Description |
| LNK-INJ601-30 | 12~48VDC Power Input Industrial 10G PoE+ Injector |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
