उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: E-link
मॉडल संख्या: एलएनके-डी4के-एसएम
दस्तावेज: E-link LNK-D4K-SM Mini 4Kx2....0.pdf
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1 पीसी
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: कार्टन पैकेजिंग
प्रसव के समय: 3-12 कार्य दिवस
भुगतान शर्तें: एल/सी, टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल
आपूर्ति की क्षमता: 1000 पीसीएस/माह
The warranty: |
1-year warranty |
Dimensions (WxDxH): |
69mm x 42 mm x 18.2 mm |
Operating Temperature: |
32° to +112° F. (0° to +50° C) |
Storage Temperature: |
-40° to +185° F. (-40° to +85° C) |
Fiber Cable: |
9/125μ Single-Mode Fiber:≤80Km(default 1.4km) |
EDID Support: |
An EDID memory built into the Tx module can learn and store the display EDID info. |
The warranty: |
1-year warranty |
Dimensions (WxDxH): |
69mm x 42 mm x 18.2 mm |
Operating Temperature: |
32° to +112° F. (0° to +50° C) |
Storage Temperature: |
-40° to +185° F. (-40° to +85° C) |
Fiber Cable: |
9/125μ Single-Mode Fiber:≤80Km(default 1.4km) |
EDID Support: |
An EDID memory built into the Tx module can learn and store the display EDID info. |
Advantages
► Support DVI 1.0 and HDMI v1.4
► Support learns and stores the display EDID info
► Support resolutions up to 3840x2160/30P
► 7.1 channel LPCM, 192 kHz, 24-bit
► Support 3840*2160/60P(YUV 420)
► Plug and Play ,Built-in EQ(Receiver)
► Support 4K/30P@ Single-Link
► One fiber,One-way
► Bandwidth up to 10.2 Gbps
► Up to 80Km distance by Single-Mode Fiber
► Does not support the HDCP and CEC
► Low RFI / EMI
► Support 3D TV pass-through
► Surface-mountable

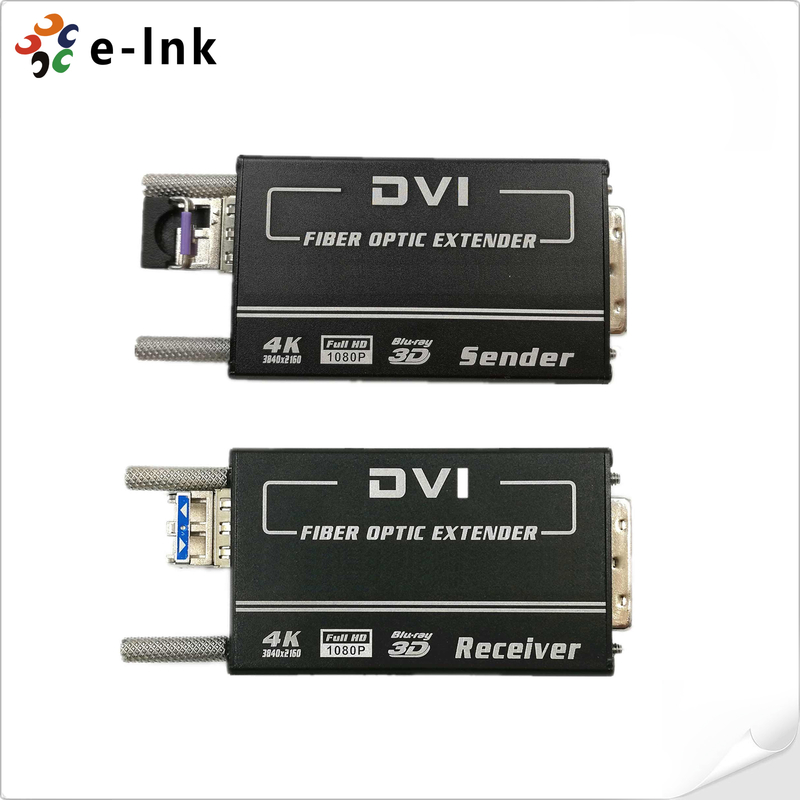

Overview
E-link Mini 4Kx2K DVI is High-Definition Multimedia Interface recently has become increasingly popular in the application of video and audio transmission system, DVI Fiber Optic Extender uses one fiber without any copper wire inside, where radio frequency interference phenomenon is literally ruled out, which shows the advantage of high performance and good signal quality as well as low cost.
The LNK-D4K-SM series is a high performance 4K Optical Extender that transmits high resolution DVI signals over extreme distances using one fiber. This extender supports HDMI v1.4 signals with resolutions up to 4K (3840*2160/30p) over cable distances up to 80km (default 1.4km).
Order Information
|
Model |
Description |
|
LNK-D4K-SM-S |
Mini 4KX2K DVI Fiber Sender Manual EDID,DC5V1A |
|
LNK-D4K-SM-R |
Mini 4KX2K DVI Fiber Receiver Manual EDID,DC5V1A |
