उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: E-link
प्रमाणन: ISO9001, CE, ROHS, FCC
मॉडल संख्या: एलएनके-1100डब्लूएसएफपी
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1pcs
मूल्य: negotiate
पैकेजिंग विवरण: मीडिया कनवर्टर मानक कार्टन पैकेजिंग
प्रसव के समय: 1-3 कार्य दिवस
भुगतान शर्तें: टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल
आपूर्ति की क्षमता: 1000/माह
एक्सेस मोड: |
10/100Mbps फास्ट ईथरनेट |
तरंगदैर्ध्य: |
850 एनएम / 1310 एनएम / 1550 एनएम |
रूपांतरण का अर्थ: |
मीडिया रूपांतरण |
बिजली की खपत: |
5w |
तापमान बनाए रखना: |
-40~70ºC |
एमटीबीएफ: |
100,000 घंटे |
एक्सेस मोड: |
10/100Mbps फास्ट ईथरनेट |
तरंगदैर्ध्य: |
850 एनएम / 1310 एनएम / 1550 एनएम |
रूपांतरण का अर्थ: |
मीडिया रूपांतरण |
बिजली की खपत: |
5w |
तापमान बनाए रखना: |
-40~70ºC |
एमटीबीएफ: |
100,000 घंटे |

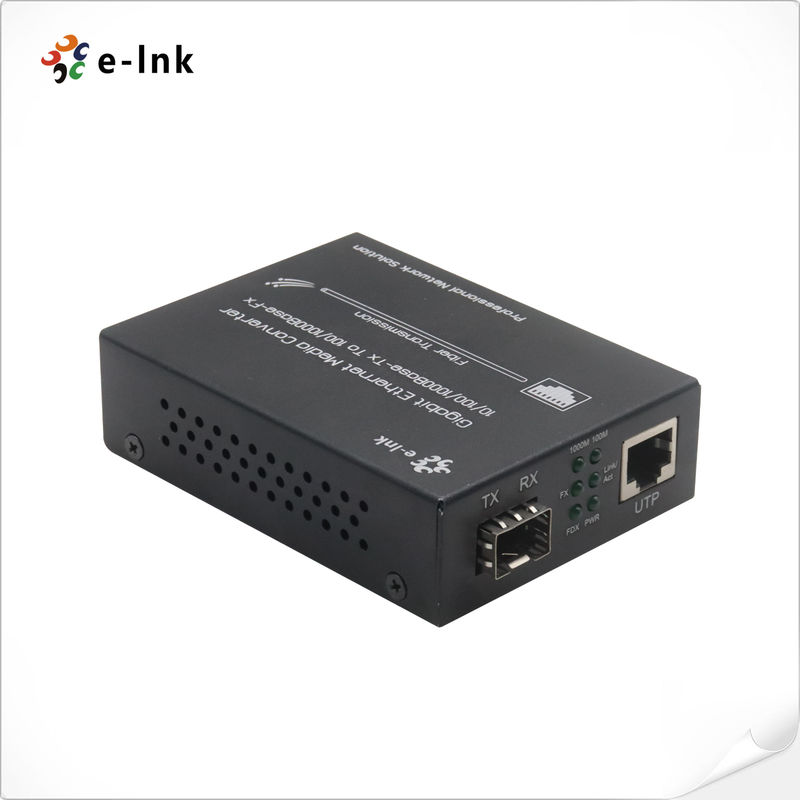

Model : LNK-1100WSFP
Overview
LNK-1100WSFP is an Ethernet media converter that converts media transmission between
UTP Copper cabling and fiber SFP (Small Form-Factor Plug gable) Transceivers. It complies
with IEEE802.3, IEEE802.3u and IEEE802.3x standards. Presently it supports two types of
media network connections: 10Base-T/100Base-TX, and 1000Base-FX, inter-converting
electrical signals of 10Base-T/100Base-TX twisted pairs with optical signals of 100Base-FX.
It extends the transmission distance of network from 100m via copper cable to 120 km via
fiber optical cables.
Features
► Supporting inter-conversion between adaptive 10Base-T/100Base-TX with 100Base-FX
► Use Port 10/100Base-TX (RJ45), 100Base-FX (SFP slot)
► Supporting full-duplex and half-duplex and its auto-sensed
► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
► Supporting the transmission of extra-long VLAN packets
► Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;
Technical Indexes
| Parameter | Specifications |
| Access mode | 10/100Mbps Fast Ethernet |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance | multi-mode Dual-fiber: 2KM |
| single mode Dual-fiber: 20/40/60/80 Km | |
| single mode Single fiber: 20/40/60/80 Km | |
| Category-5 twisted pairs: 100m | |
| Port | One RJ45 port: for connecting with STP/UTP category-5 twisted pairs |
| One optical port: SFP 3.3V | |
| Conversion means | Media conversion |
| BER | <10-9 |
| MTBF | 100,000 hours |
| LED indicator | POWR (power supply); FX LINK/ACT (optical link action); FDX (FX full duplex), TX LINK/ACT (TP cable link/action); TX 100 (TP cable rate 100M), FX100(fiber cable rate 100M) |
| Power supply | External Power: AC90~264V/DC100~380V input, 5V1A output |
| Power consumption | 5W |
| Operating temperature | -10~55ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Model | Description |
| LNK-1100WSFP | 10/100Base-T to 100Base-F, SFP slot, excl. SFP module, standalone, external power adaptor |
