उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: E-link
प्रमाणन: CE, RoHS, FCC
मॉडल संख्या: एलएनके-WP901
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1pc
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: पीओई इंजेक्टर मानक निर्यात पैकेज
प्रसव के समय: 3 ~ 5 कार्य दिवस
भुगतान शर्तें: पेपैल, टीटी, वेस्टर्न यूनियन, मनीग्राम, अलीपे
आपूर्ति की क्षमता: प्रति माह 2000 पीसी
उत्पाद का नाम: |
जलरोधक पीओई इंजेक्टर |
इनपुट: |
48 ~ 57 वीडीसी |
आउटपुट: |
IEEE802.3bt 95W |
पावर पिन: |
4/5(+), 7/8(-) और 3/6(+),1/2(-) |
वजन: |
1.5 किलो |
आकार: |
260 मिमी x 210 मिमी x 80 मिमी |
उत्पाद का नाम: |
जलरोधक पीओई इंजेक्टर |
इनपुट: |
48 ~ 57 वीडीसी |
आउटपुट: |
IEEE802.3bt 95W |
पावर पिन: |
4/5(+), 7/8(-) और 3/6(+),1/2(-) |
वजन: |
1.5 किलो |
आकार: |
260 मिमी x 210 मिमी x 80 मिमी |

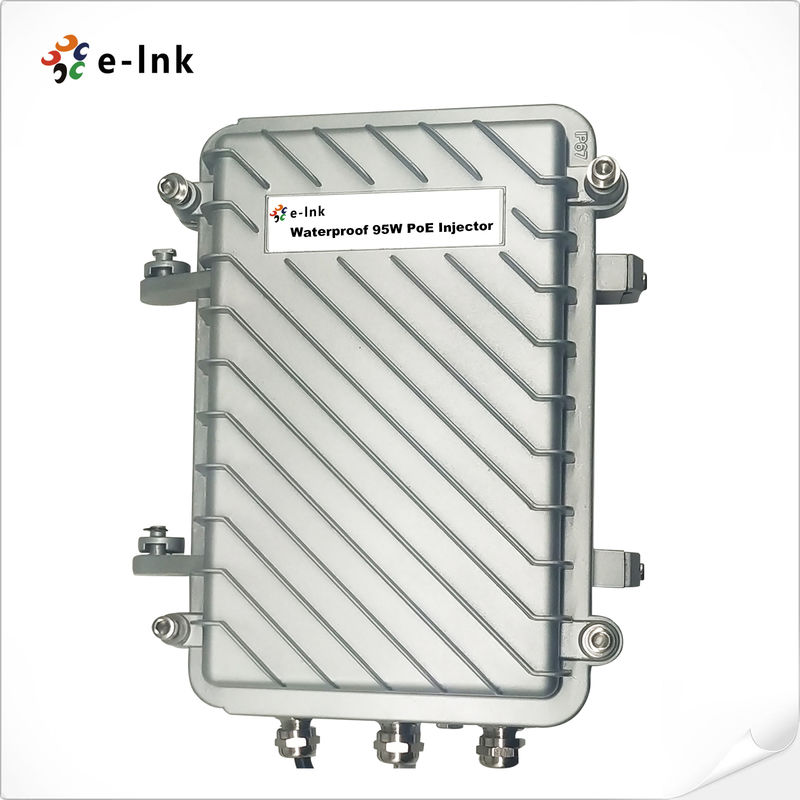

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection
Features
► Protection level: IP67
► 6KV(10/700us) surge protection on LAN, PoE ports
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port(Data + Power)
► Support 95W LTPoE++ Power Sourcing Equipment
► Supports Wall-mount installation
► Environmentally hardened -40°C to 80°C
(-40°F to 176°F) operating temperature
Overview
LNK-WP901 provides 95W PoE power for remote PDs over 4 pairs output with 6KV (10/700us) surge
protection, fully compliant solution for outdoor installations, guaranteeing 30 Watts of power and ensuring
safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless
LAN access points, security network cameras and other IP terminals to receive power, a long with data,
over standard Ethernet cables, leaving network infrastructure completely unaltered.
Application
Technical Indexes
| Parameter | Specifications |
| Standard |
IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet Support terminal equipment with IEEE802.3af/at/bt, PoE++ RoHS Compliance WEEE Compliance Protection Level: IP67, IEC60529, NEMA 250 |
| Input & Output |
Input : 48~57VDC Output: IEEE802.3bt 95W Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-) Data Speed: 10/100/1000Mbps |
| Working Environment |
Operating Temperature: -40℃ to 80℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| AC Surge Protection |
Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| PoE Surge Protection |
Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| Mechanical Characteristics | Case: Metal |
| Color: Gray | |
| Mounting: Pole-mounted | |
| IP Rated: IP67 | |
| Size (LxWxH): 260mm X 210mm X 80mm | |
| Weight: 1.5KG |
