उत्पाद का विवरण
Place of Origin: China
ब्रांड नाम: E-link
प्रमाणन: CE
Model Number: LNK-INJ301-30
दस्तावेज: E-link LNK-INJ301-30 Indust....0.pdf
भुगतान और शिपिंग की शर्तें
Minimum Order Quantity: 1pcs
मूल्य: बातचीत योग्य
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
Temperature: |
-40°C to 80°C (-40°F to 176°F) |
Mounting Options: |
DIN-Rail / Wall-mount |
Poe Port: |
8 Port 10/100/1000T 802.3at |
Vlan Number: |
4K |
Fiber Ports: |
4 x 1000BASE-SFP ports |
Operating Temperature: |
-40°C to 75°C |
Temperature: |
-40°C to 80°C (-40°F to 176°F) |
Mounting Options: |
DIN-Rail / Wall-mount |
Poe Port: |
8 Port 10/100/1000T 802.3at |
Vlan Number: |
4K |
Fiber Ports: |
4 x 1000BASE-SFP ports |
Operating Temperature: |
-40°C to 75°C |

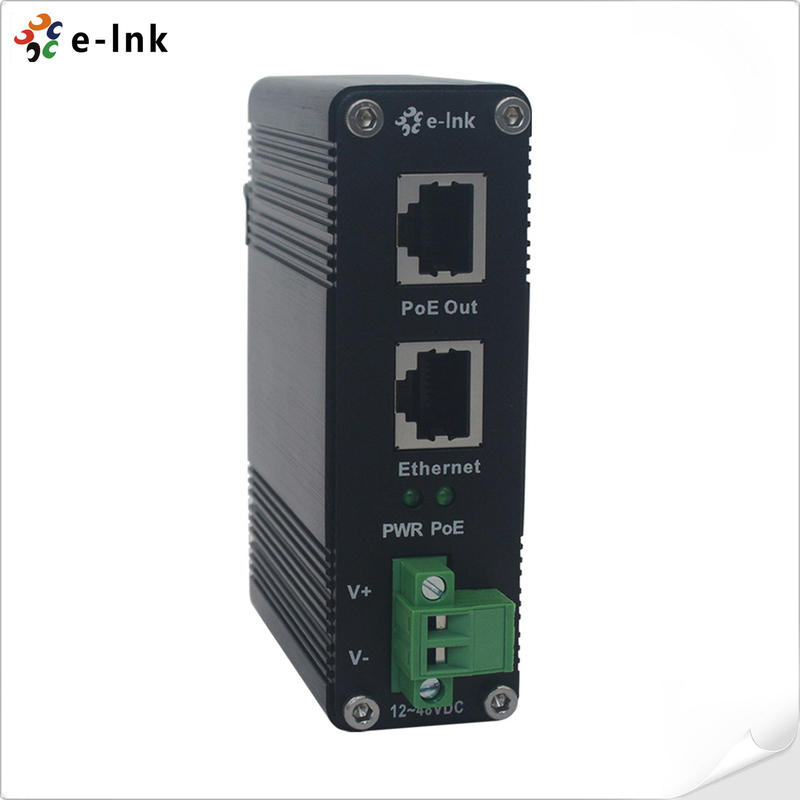

12~48V DC Power Input Industrial Gigabit PoE+ Injector
Industrial Ethernet Switch Advantages:
► 12~48V DC Power Input
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)
► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment
► Support 10/100/1000Base-TX
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
► Small Size 95 x 70 x 30 mm
► Aluminum Alloy Metal Case
► Support DIN-rail mounting and wall mounting installation
Overview
The LNK-INJ301-30 product is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.
Technical Indexes
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC (Terminal Block) |
|
Power Consumption: |
36W Max. |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE802.3af/at |
|
Port: |
RJ45 |
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
Max. Power per Port: |
30W Max per port (Alternative B Mode) |
Application
Ordering Information
|
Model |
Description |
|
LNK-INJ301 |
12~48VDC Power Input Industrial Gigabit PoE+ Injector |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |
